Panduit LC Duplex Fiber Optic Patch Cord (Fiber Optic Patch Cords). Model Panduit OM4/OM5 Signature Core Push-Pull LC Duplex. Fiber Type: OM4 and OM5 Signature Core

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFOM4.pdfData sheet

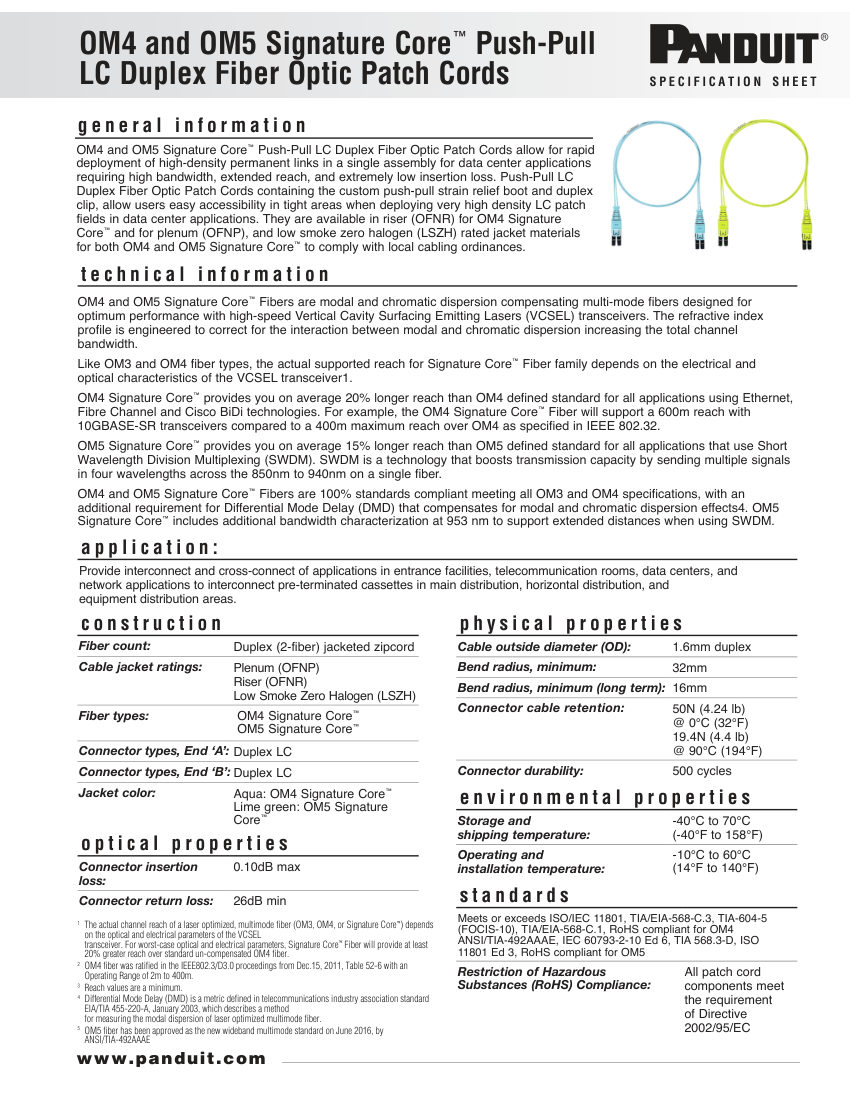

Panduit OM4 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
OM4
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberOM4
DescriptionPanduit LC Duplex Fiber Optic Patch Cord (Fiber Optic Patch Cords). Model Panduit OM4/OM5 Signature Core Push-Pull LC Duplex. Fiber Type: OM4 and OM5 Signature Core
Connector Insertion Loss0.10dB max
Connector Return Loss26dB min
Minimum Bend Radius32mm (short term), 16mm (long term). material: LSZH, OFNP, OFNR
Connection sizeLC Duplex
End connectionDuplex LC
FinishAqua (OM4), Lime Green (OM5)
Dimensions1.6mm OD
ComplianceISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5, RoHS.
