DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitPanduit Laser/Inkjet Printable Polyester Technical Data Shee

Panduit Laser/Inkjet Printable Polyester Film (Labeling Material). Model JL*Y / YJJ / YLJ. Service Temperature Range: -40°F to 311°F (-40°C to 154°C); Peel Adhesion to Stainless Steel: 45 oz/in width

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPanduit-Laser-Inkjet-Printable-Polyester-Technical-Data-Shee.pdfData sheet

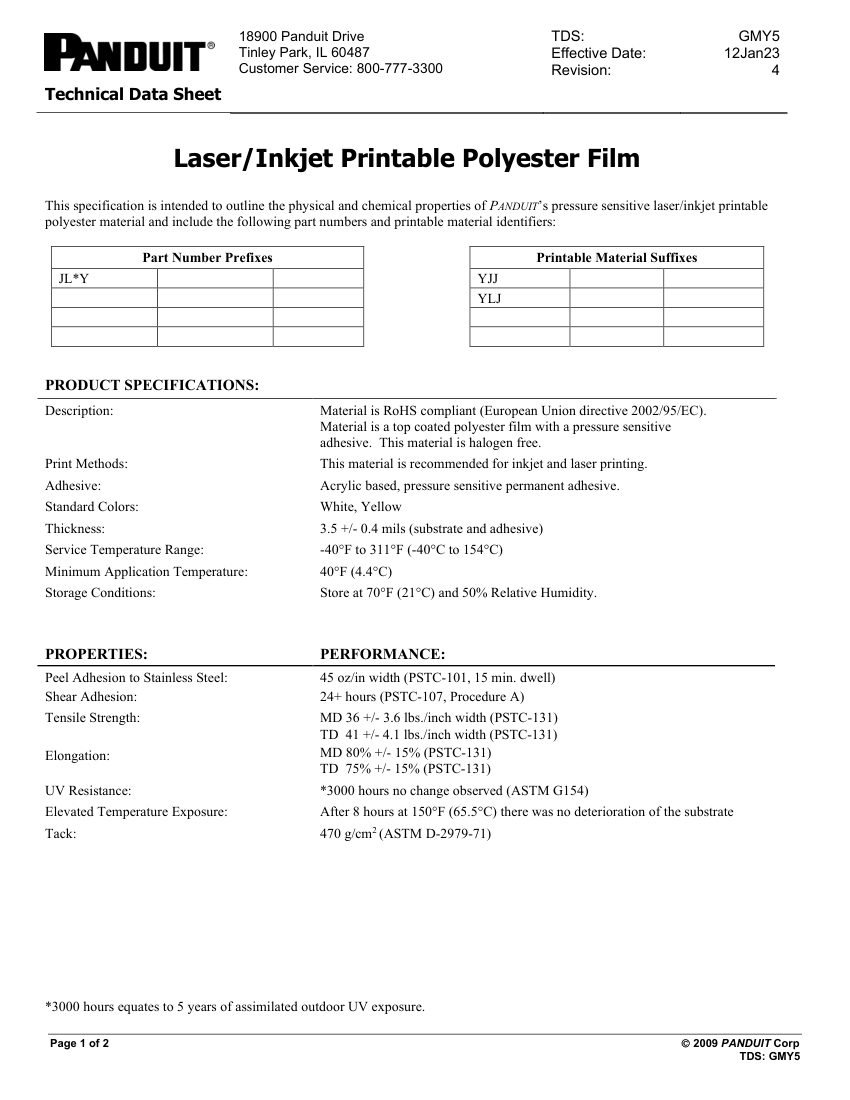

Panduit Panduit Laser/Inkjet Printable Polyester Technical Data Shee cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
Panduit Laser/Inkjet Printable Polyester Technical Data Shee
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPanduit Laser/Inkjet Printable Polyester Technical Data Shee
DescriptionPanduit Laser/Inkjet Printable Polyester Film (Labeling Material). Model JL*Y / YJJ / YLJ. Service Temperature Range: -40°F to 311°F (-40°C to 154°C); Peel Adhesion to Stainless Steel: 45 oz/in width
UV Resistance3000 hours no change observed (ASTM G154)
Tensile StrengthMD 36 +/- 3.6 lbs./inch width, TD 41 +/- 4.1 lbs./inch width. material: Top coated polyester film with pressure sensitive adhesive
FinishWhite, Yellow
MountingPressure sensitive permanent adhesive
Dimensions3.5 +/- 0.4 mils thickness
ComplianceRoHS compliant, Halogen free, UL 969, C22.2 No. 0.15-01.
