DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED
PanduitPanduit Panduit GMM Film Lamination
Panduit Film Lamination (Identification Solutions). Model GMM. Acrylic based, pressure sensitive permanent adhesive
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Panduit
- Catalog no.
- Panduit Panduit GMM Film Lamination
- Product type
- Communications
- MasterFormat
- 27

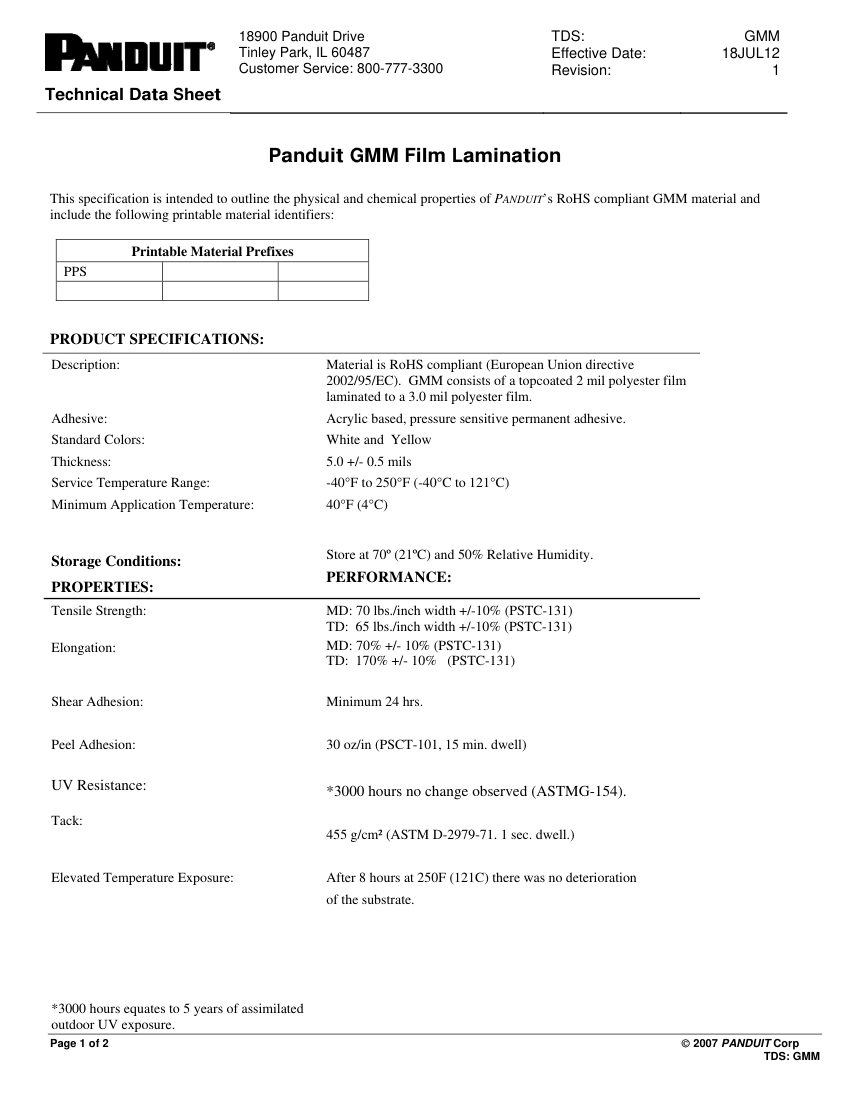

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | Panduit Panduit GMM Film Lamination |
|---|---|
| Description | Panduit Film Lamination (Identification Solutions). Model GMM. Acrylic based, pressure sensitive permanent adhesive |
| Service Temperature Range | -40°F to 250°F (-40°C to 121°C); Minimum Application Temperature: 40°F (4°C) |
| Tensile Strength MD | 70 lbs./inch width +/-10%. material: Topcoated 2 mil polyester film laminated to 3.0 mil polyester film |
| Finish | White and Yellow |
| Dimensions | 5.0 +/- 0.5 mils |
| Compliance | RoHS (European Union directive 2002/95/EC). |
