DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitPanduit Polyester Technical

Panduit Thermal Transfer Printable Polyester Film (Labeling Material). Model GMY4-W. Service Temperature Range: -40°F to 302°F (-40°C to 150°C); Peel Adhesion to Stainless Steel: 48 oz/in width

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPanduit-Polyester-Technical.pdfData sheet

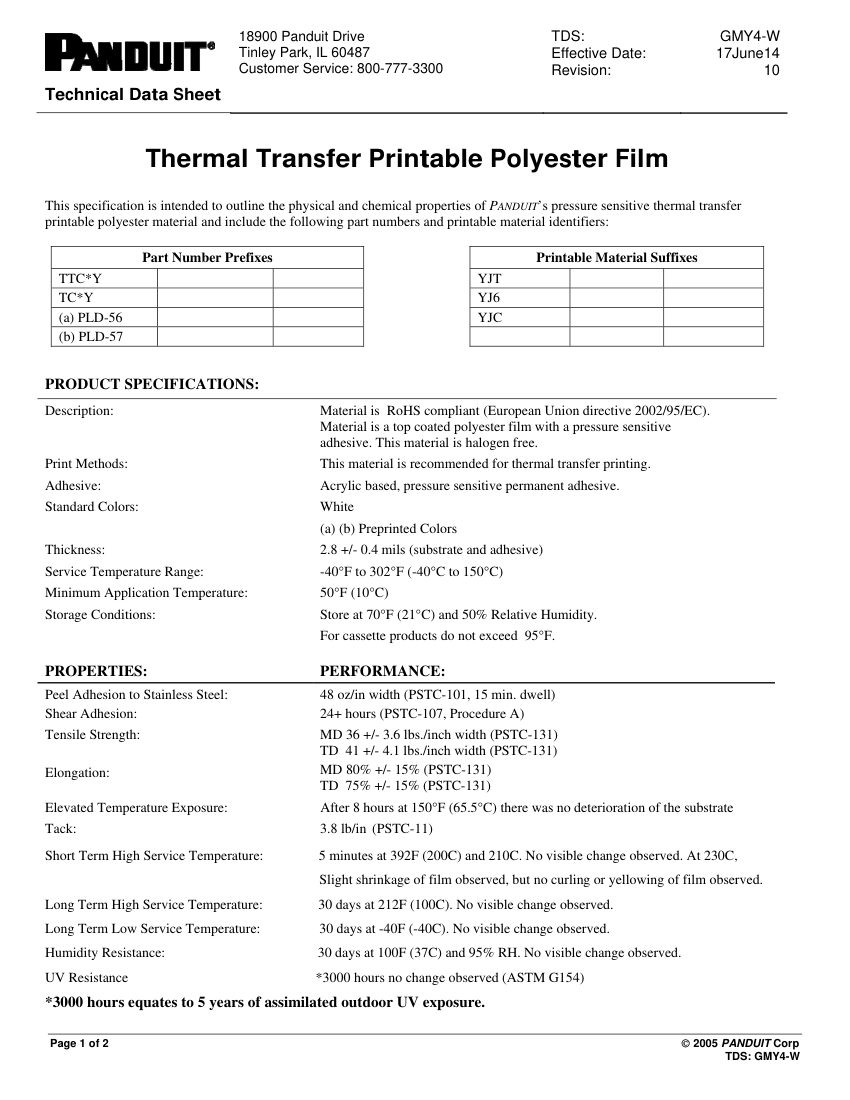

Panduit Panduit Polyester Technical cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
Panduit Polyester Technical
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPanduit Polyester Technical
DescriptionPanduit Thermal Transfer Printable Polyester Film (Labeling Material). Model GMY4-W. Service Temperature Range: -40°F to 302°F (-40°C to 150°C); Peel Adhesion to Stainless Steel: 48 oz/in width
Tensile StrengthMD 36 +/- 3.6 lbs./inch width
UV Resistance3000 hours no change observed. material: Polyester film with acrylic pressure sensitive adhesive
FinishTop coated
MountingPressure sensitive adhesive
Dimensions2.8 +/- 0.4 mils thickness
ComplianceRoHS, UL969, C22.2 No 0.15-01.
