PanduitPanduit Polyimide Technical

Panduit Thermal Transfer Printable Polyimide Film (Labeling). Model TTC*KW / TTC*K. Service Temperature Range: -40°F to 350°F (-40°C to 177°C); Peel Adhesion to Stainless Steel: 35 oz/in width minimum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPanduit-Polyimide-Technical.pdfData sheet

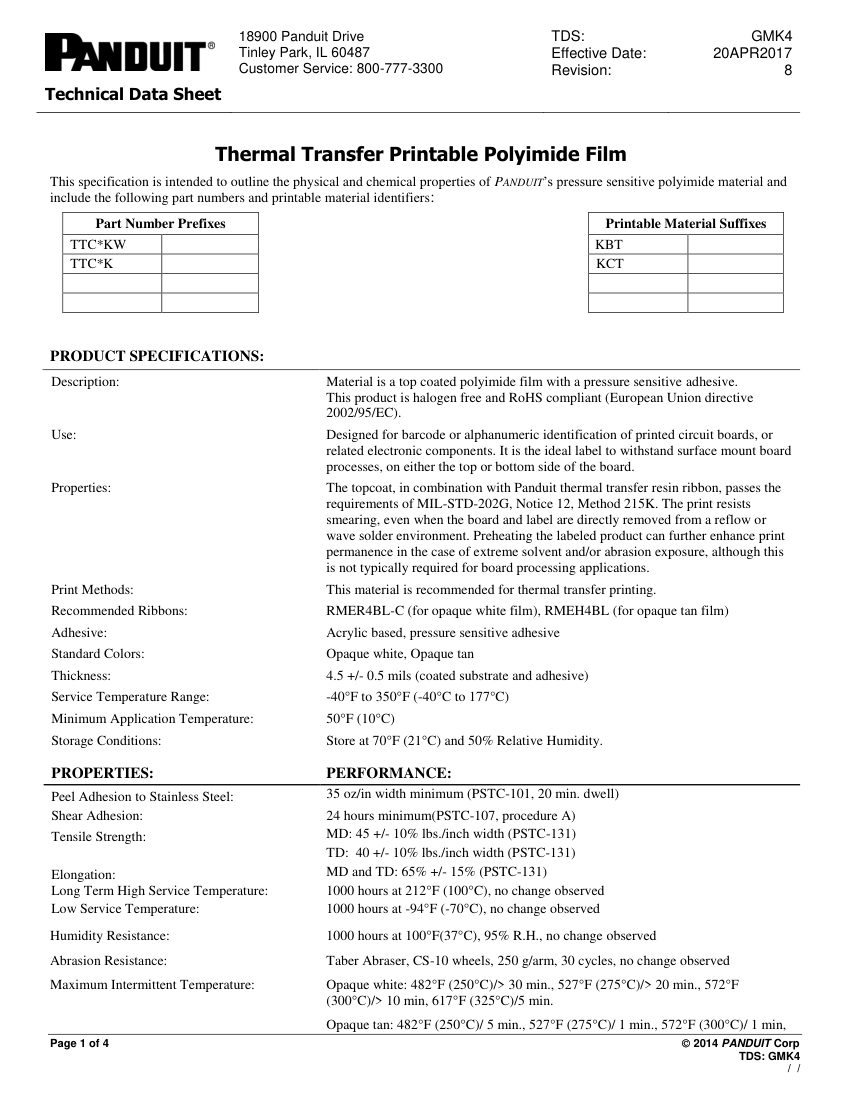

Panduit Panduit Polyimide Technical cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
Panduit Polyimide Technical
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPanduit Polyimide Technical
DescriptionPanduit Thermal Transfer Printable Polyimide Film (Labeling). Model TTC*KW / TTC*K. Service Temperature Range: -40°F to 350°F (-40°C to 177°C); Peel Adhesion to Stainless Steel: 35 oz/in width minimum
Tensile StrengthMD 45 +/- 10% lbs./inch width
Print MethodThermal transfer. material: Polyimide film with acrylic based pressure sensitive adhesive
FinishOpaque white, Opaque tan
MountingPressure sensitive adhesive
Dimensions4.5 +/- 0.5 mils thickness
ComplianceRoHS compliant (2002/95/EC), Halogen free, MIL-STD-202G.
