DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitPanduit Thermal Transfer Printable Polyester Film - Technica

Panduit Thermal Transfer Printable Polyester Film (Labeling Material). Model GMY14. Service Temperature Range: -40°F to 257°F (-40°C to 125°C); Peel Adhesion to Stainless Steel: 35 oz/in width

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPanduit-Thermal-Transfer-Printable-Polyester-Film---Technica.pdfData sheet

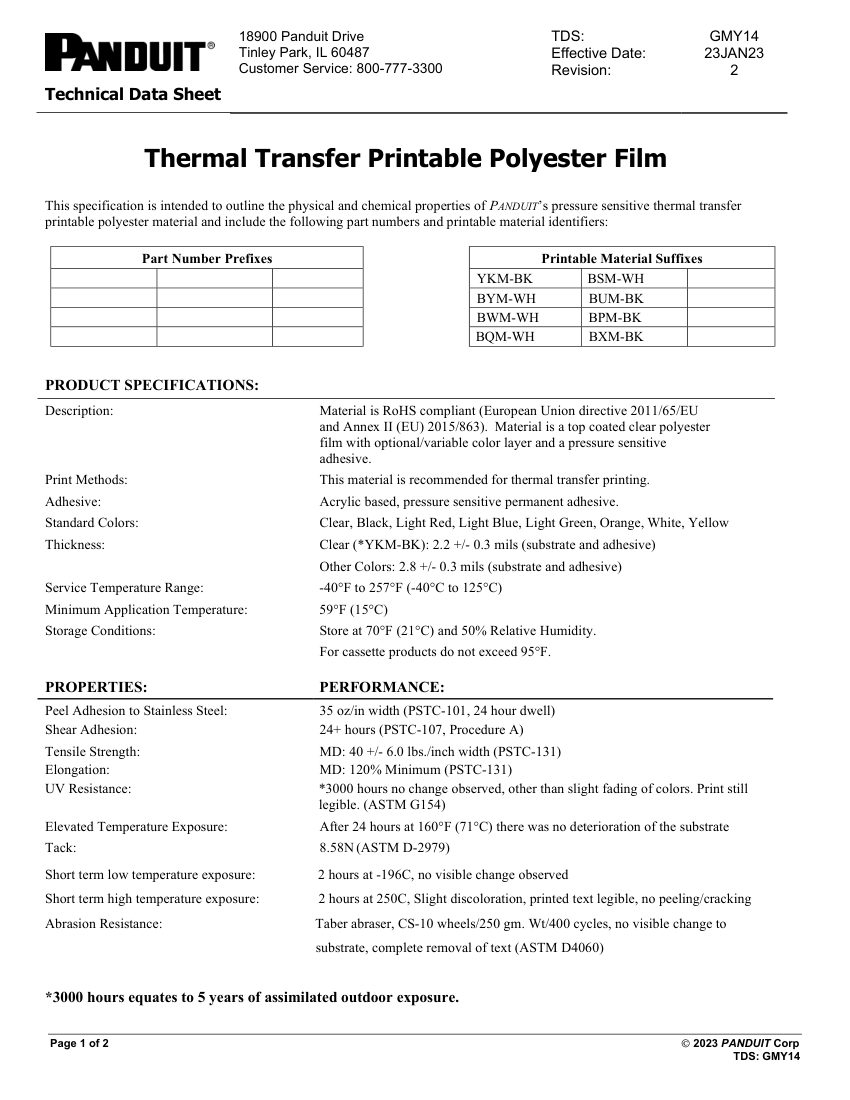

Panduit Panduit Thermal Transfer Printable Polyester Film - Technica cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
Panduit Thermal Transfer Printable Polyester Film - Technica
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPanduit Thermal Transfer Printable Polyester Film - Technica
DescriptionPanduit Thermal Transfer Printable Polyester Film (Labeling Material). Model GMY14. Service Temperature Range: -40°F to 257°F (-40°C to 125°C); Peel Adhesion to Stainless Steel: 35 oz/in width
Tensile Strength40 +/- 6.0 lbs./inch width
UV Resistance3000 hours no change observed. material: Polyester film with acrylic pressure sensitive adhesive
FinishTop coated clear
MountingPressure sensitive adhesive
DimensionsThickness: 2.2 +/- 0.3 mils (Clear), 2.8 +/- 0.3 mils (Other Colors)
ComplianceRoHS compliant (EU 2011/65/EU), UL969 (File MH 64185).
