PanduitPAN-CLAMP™ Heavy Duty Fixed Diameter ClampsPC038-H25D-C0

Panduit Fixed Diameter Clamp (Cable Management). Model PC038-H25D-C0 through PC125-H25D-C0. Max holding force 70 lbs (31.8kg) in tension; Shear strength over 125 lbs (56.7kg); Temperature range -76°F (-60°C) to 185°F (85°C); One-piece integrated fastener solution. material: Impact modified weather resistant Nylon 6.6

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPC038-H25D-C0.pdfData sheet

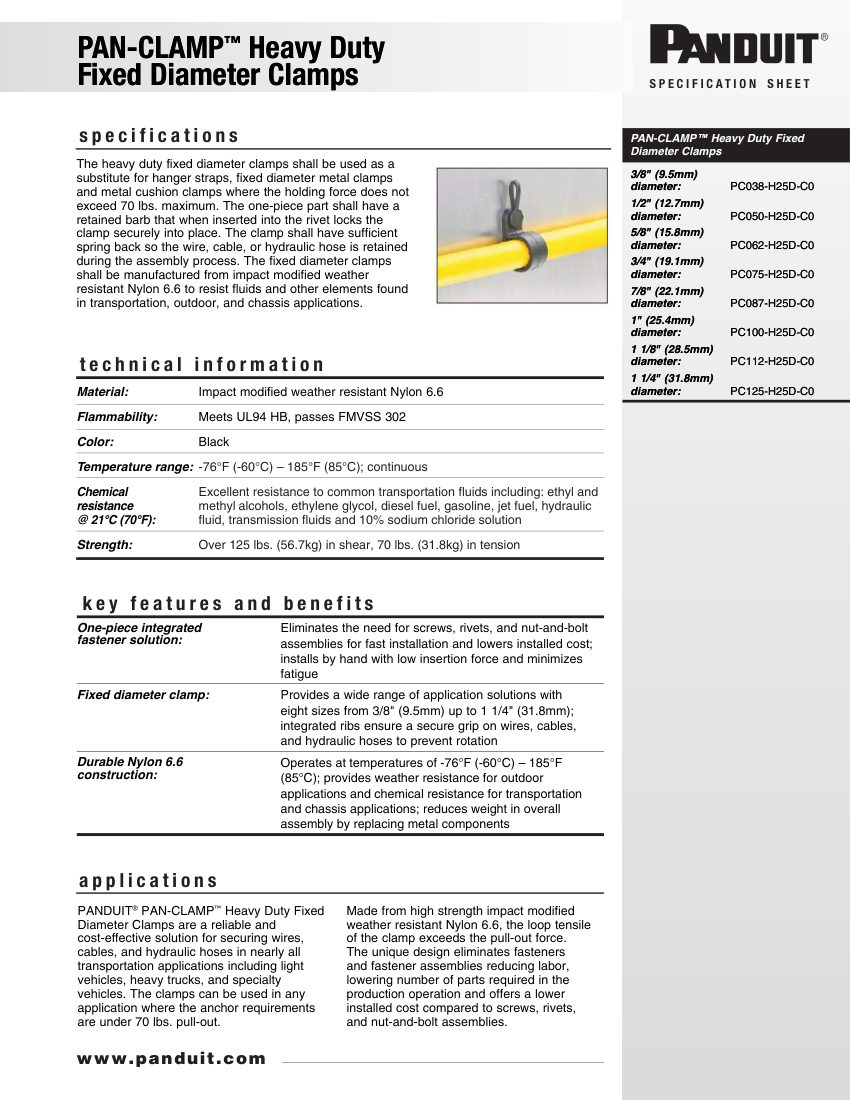

Panduit PC038-H25D-C0 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
PC038-H25D-C0
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPC038-H25D-C0
DescriptionPanduit Fixed Diameter Clamp (Cable Management). Model PC038-H25D-C0 through PC125-H25D-C0. Max holding force 70 lbs (31.8kg) in tension; Shear strength over 125 lbs (56.7kg); Temperature range -76°F (-60°C) to 185°F (85°C); One-piece integrated fastener solution. material: Impact modified weather resistant Nylon 6.6
Connection size3/8" (9.5mm) to 1 1/4" (31.8mm)
End connectionRetained barb
FinishBlack
MountingPanel thickness .055" (1.4mm) – .140" (3.6mm); Panel hole .275" (7.0mm) – .288" (7.3mm)
DimensionsBundle Width .62" (15.7mm).

Also cataloged as: PC050-H25D-C0, PC062-H25D-C0, PC075-H25D-C0, PC087-H25D-C0, PC100-H25D-C0, PC112-H25D-C0, PC125-H25D-C0, PC-038-H25D-C0, PC-050-H25D-C0, PC-062-H25D-C0, PC-075-H25D-C0
