PanduitPEL*Y1C

Panduit Tamper-Evident Polyester Film (Panduit Identification Solutions). Model GMY2-STE. Service temperature range: -40°F to 302°F (-40°C to 150°C); Tamper-evident feature becomes non-functional above 104°F (70°C)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPEL-Y1C.pdfData sheet

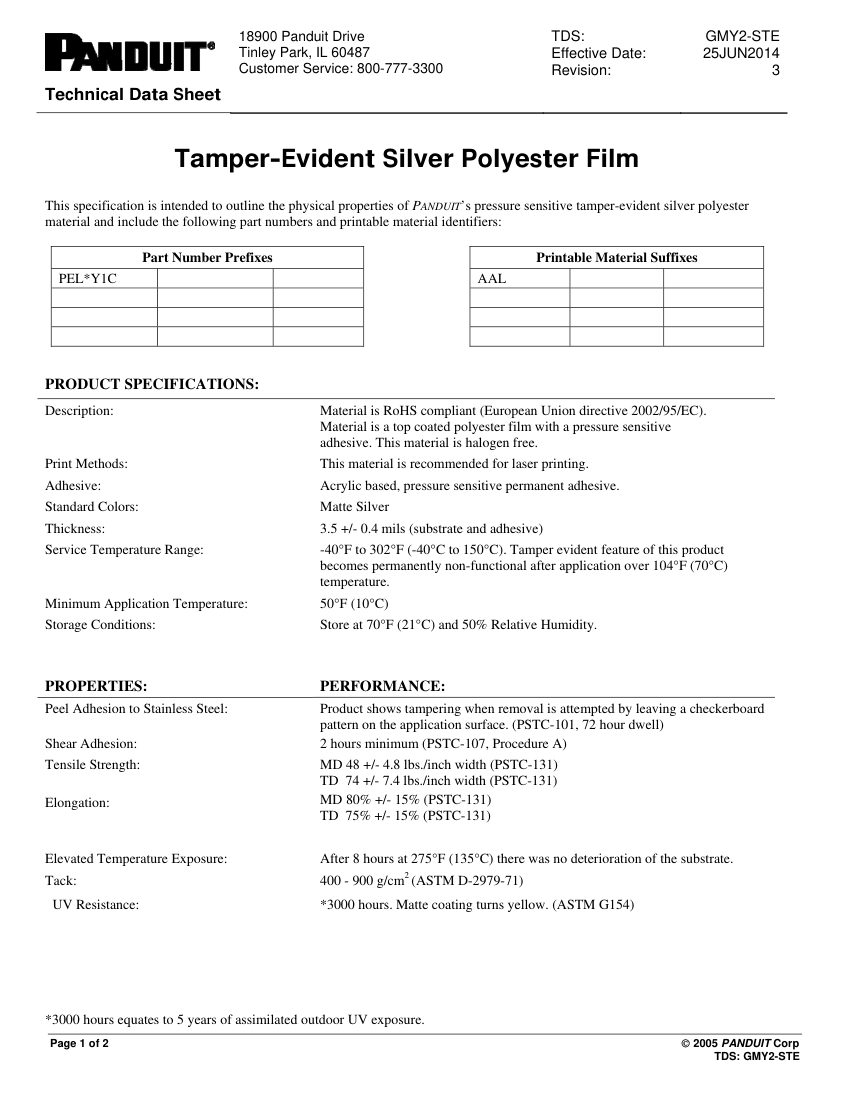

Panduit PEL*Y1C cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
PEL*Y1C
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPEL*Y1C
DescriptionPanduit Tamper-Evident Polyester Film (Panduit Identification Solutions). Model GMY2-STE. Service temperature range: -40°F to 302°F (-40°C to 150°C); Tamper-evident feature becomes non-functional above 104°F (70°C)
Tensile strengthMD 48 +/- 4.8 lbs./inch, TD 74 +/- 7.4 lbs./inch
UV resistance3000 hours (approx. 5 years outdoor exposure). material: Polyester film with acrylic pressure sensitive adhesive
FinishMatte Silver
MountingPressure sensitive adhesive
Dimensions3.5 +/- 0.4 mils thickness
ComplianceRoHS compliant, Halogen free.
