PanduitTX5e™ Category 5e U/UTP Copper CablePUP5C04*-F

Panduit Category 5e U/UTP Copper Cable (Structured Cabling). Model PUP5C04*-F / PUR5C04*-F. Certified channel performance up to 100 MHz; Supports Gigabit Ethernet (1000BASE-T); Plenum and Riser flame ratings available; Maximum installation tension 25 lbf (110 N). material: 24 AWG bare copper conductors, FEP/polyolefin or polyolefin insulation, PVC jacket

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPUP5C04--F.pdfData sheet

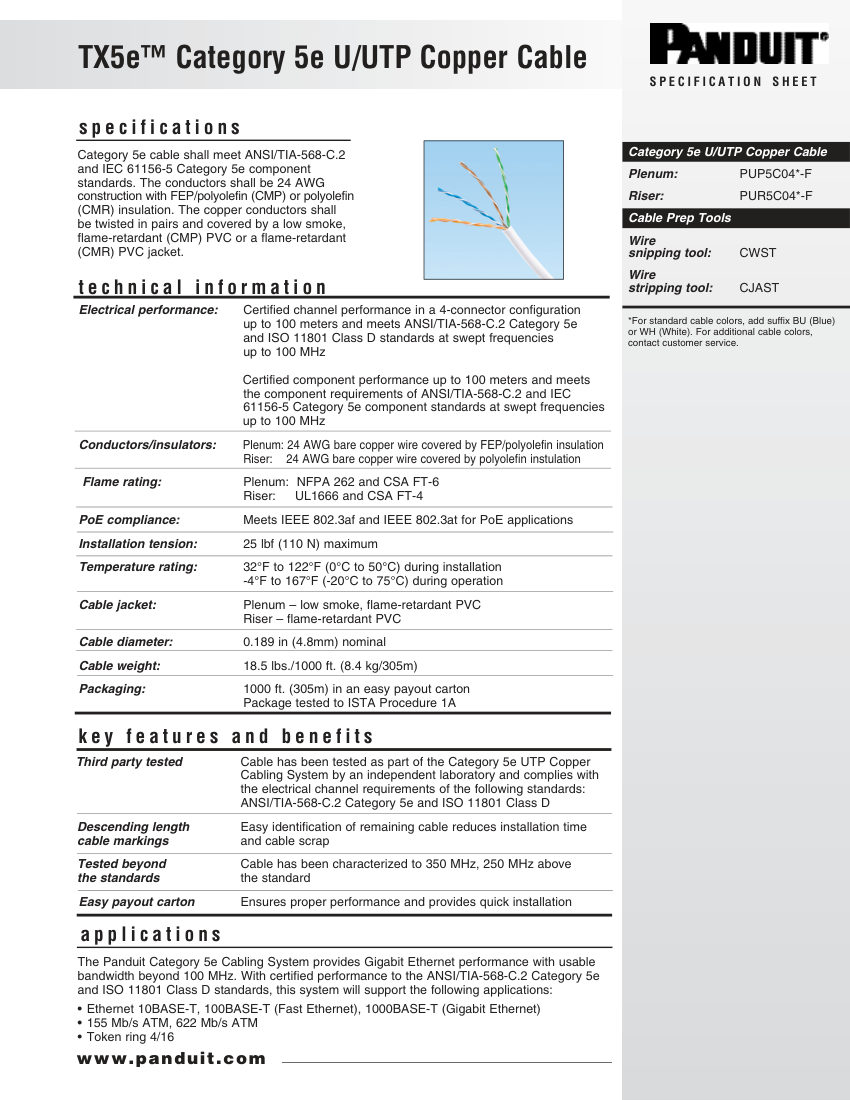

Panduit PUP5C04*-F cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
PUP5C04*-F
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPUP5C04*-F
DescriptionPanduit Category 5e U/UTP Copper Cable (Structured Cabling). Model PUP5C04*-F / PUR5C04*-F. Certified channel performance up to 100 MHz; Supports Gigabit Ethernet (1000BASE-T); Plenum and Riser flame ratings available; Maximum installation tension 25 lbf (110 N). material: 24 AWG bare copper conductors, FEP/polyolefin or polyolefin insulation, PVC jacket
Dimensions0.189 in (4.8mm) nominal diameter
ComplianceANSI/TIA-568-C.2, IEC 61156-5, ISO 11801 Class D, NFPA 262, CSA FT-6, UL1666, CSA FT-4, IEEE 802.3af/at
Voltage80V maximum.

Also cataloged as: PUR5C04*-F, P-UP5C04, P-UR5C04
