PanduitReflective TapeR*1

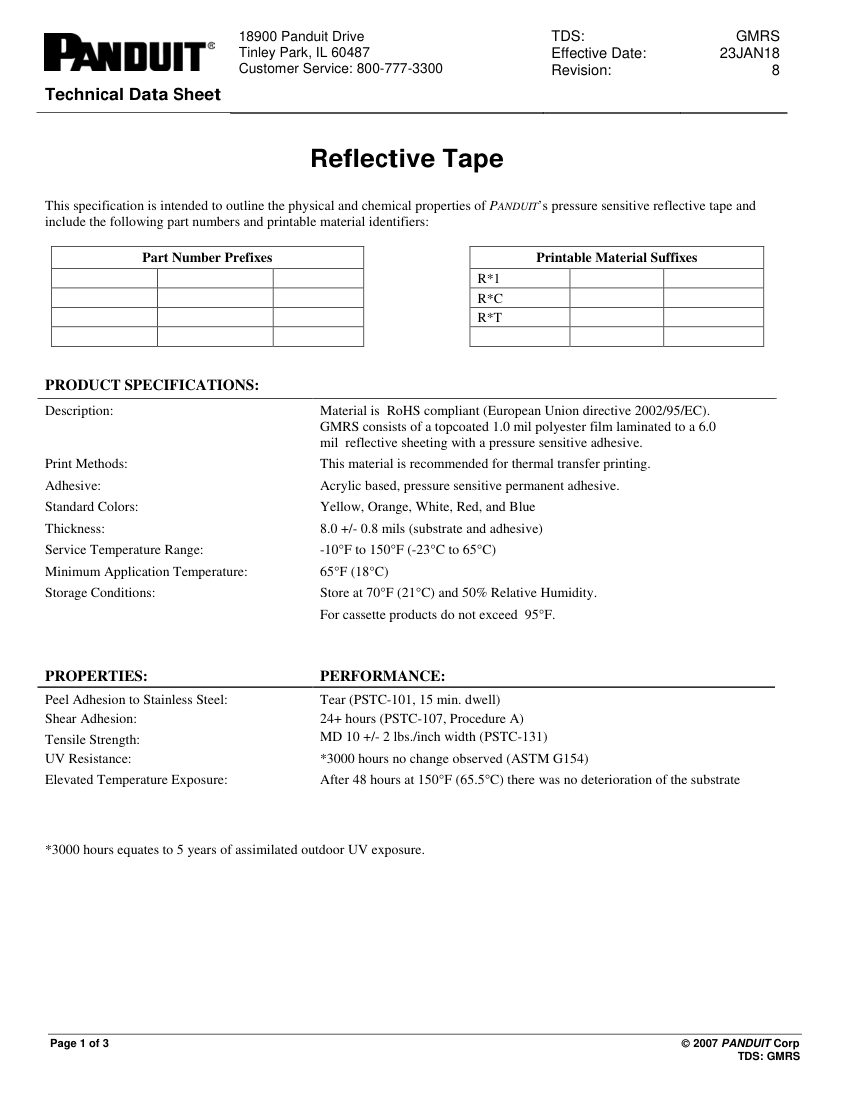

Name: Panduit Reflective Tape (R*1)
Brand: Panduit
SKU: R*1

Panduit Reflective Tape (Identification). Model GMRS. Service Temperature Range: -10°F to 150°F (-23°C to 65°C)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	R*1
Description	Panduit Reflective Tape (Identification). Model GMRS. Service Temperature Range: -10°F to 150°F (-23°C to 65°C)
Adhesive	Acrylic based, pressure sensitive permanent
UV Resistance	3000 hours no change observed (ASTM G154)
Standard Colors	Yellow, Orange, White, Red, and Blue. material: 1.0 mil polyester film laminated to 6.0 mil reflective sheeting
Finish	Topcoated
Mounting	Pressure sensitive adhesive
Dimensions	8.0 +/- 0.8 mils thickness
Compliance	RoHS, UL 969, C22.2 No 0.15-01.
