PanduitOpen Frame Racks Selection GuideR2P

Panduit Telecommunication and Data Center Rack (Open Frame Racks). Model R2P*, R2P6S*, AR4P*, R4P* Series. Load ratings range from 1,000 lbs (454 kg) to 2,500 lbs (1,134 kg); Available heights include 13, 24, 42, 45, and 52 RU; Thread type is #12-24 for all series; Cage nut rails available on 4-Post series only. material: Aluminum, Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFR2P.pdfData sheet

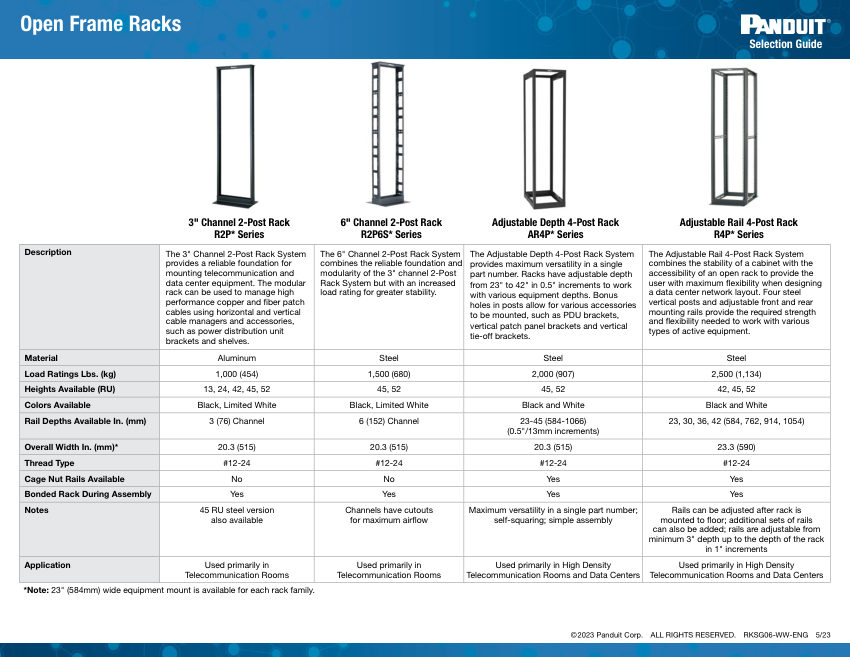

Panduit R2P cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
R2P
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberR2P
DescriptionPanduit Telecommunication and Data Center Rack (Open Frame Racks). Model R2P*, R2P6S*, AR4P*, R4P* Series. Load ratings range from 1,000 lbs (454 kg) to 2,500 lbs (1,134 kg); Available heights include 13, 24, 42, 45, and 52 RU; Thread type is #12-24 for all series; Cage nut rails available on 4-Post series only. material: Aluminum, Steel
FinishBlack, Limited White
MountingFloor mounted, Adjustable rails
DimensionsWidth 20.3-23.3 in (515-590 mm), Depth 3-45 in (76-1066 mm), Height 13-52 RU.
