PanduitVeriSafe™ Insulation Piercing ConnectorSFSP13--WW-ENG

Panduit Insulation Piercing Connector (VeriSafe). Model VS-CKP14-6, VS-CKP4-000, VS-CKP1K4/0-500. Accommodates up to two taps in a single housing; Optimized for VeriSafe AVT sensor leads with F80-12 ferrules; Operating temperature up to 90°C (194°F); Suitable for new and retrofit applications without stripping insulation. material: Polyamide housing, elastomeric polymer insulator

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSFSP13--WW-ENG.pdfData sheet

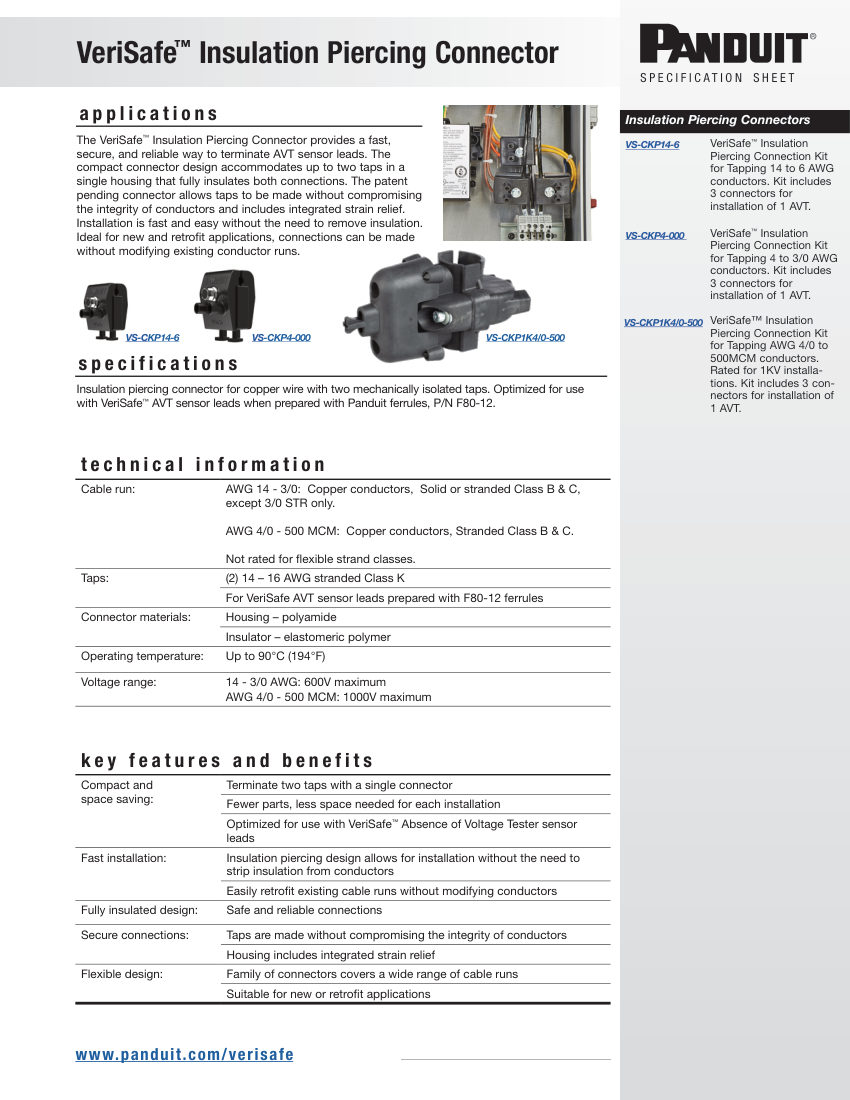

Panduit SFSP13--WW-ENG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
SFSP13--WW-ENG
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSFSP13--WW-ENG
DescriptionPanduit Insulation Piercing Connector (VeriSafe). Model VS-CKP14-6, VS-CKP4-000, VS-CKP1K4/0-500. Accommodates up to two taps in a single housing; Optimized for VeriSafe AVT sensor leads with F80-12 ferrules; Operating temperature up to 90°C (194°F); Suitable for new and retrofit applications without stripping insulation. material: Polyamide housing, elastomeric polymer insulator
Connection sizeAWG 14 to 500 MCM
End connectionInsulation piercing
Voltage600V max (AWG 14-3/0), 1000V max (AWG 4/0-500 MCM).
