PanduitTHM1SC Harness MountsTHM1SC

Panduit Harness Mount (Cable Management). Model THM1SC. Panel hole diameter required: 0.25" (6.5mm)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTHM1SC.pdfData sheet

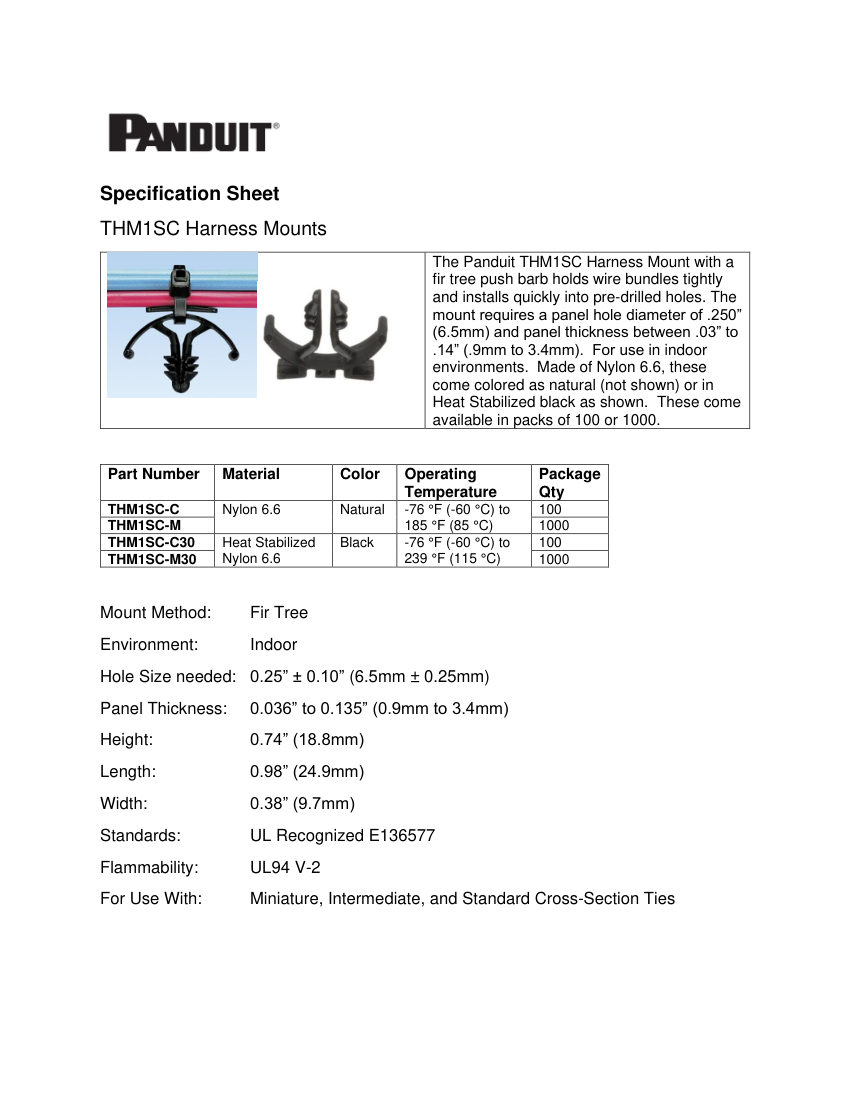

Panduit THM1SC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
THM1SC
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTHM1SC
DescriptionPanduit Harness Mount (Cable Management). Model THM1SC. Panel hole diameter required: 0.25" (6.5mm)
Panel thickness range0.036" to 0.135" (0.9mm to 3.4mm)
Operating temperature-76°F to 185°F (Natural) or -76°F to 239°F (Black)
EnvironmentIndoor. material: Nylon 6.6
FinishNatural or Heat Stabilized Black
MountingFir Tree Push Barb
Dimensions0.74" H x 0.98" L x 0.38" W (18.8mm x 24.9mm x 9.7mm)
ComplianceUL Recognized E136577, UL94 V-2.
