DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitTMSG11--SA-ENG

Panduit Wire Terminal Selection Guide (Electrical Terminals). Model TMSG11--SA-ENG. Covers Ring, Fork, and Locking Fork terminals; Includes Barrel and Female Disconnect terminals; Wire range supports 22 AWG to 10 AWG; Insulation options include Vinyl and Nylon. connectionSize: Wire Range 22-10 AWG; Stud Sizes 1/4" to 3/8"; Tab Sizes .110" to .250"

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTMSG11--SA-ENG.pdfData sheet

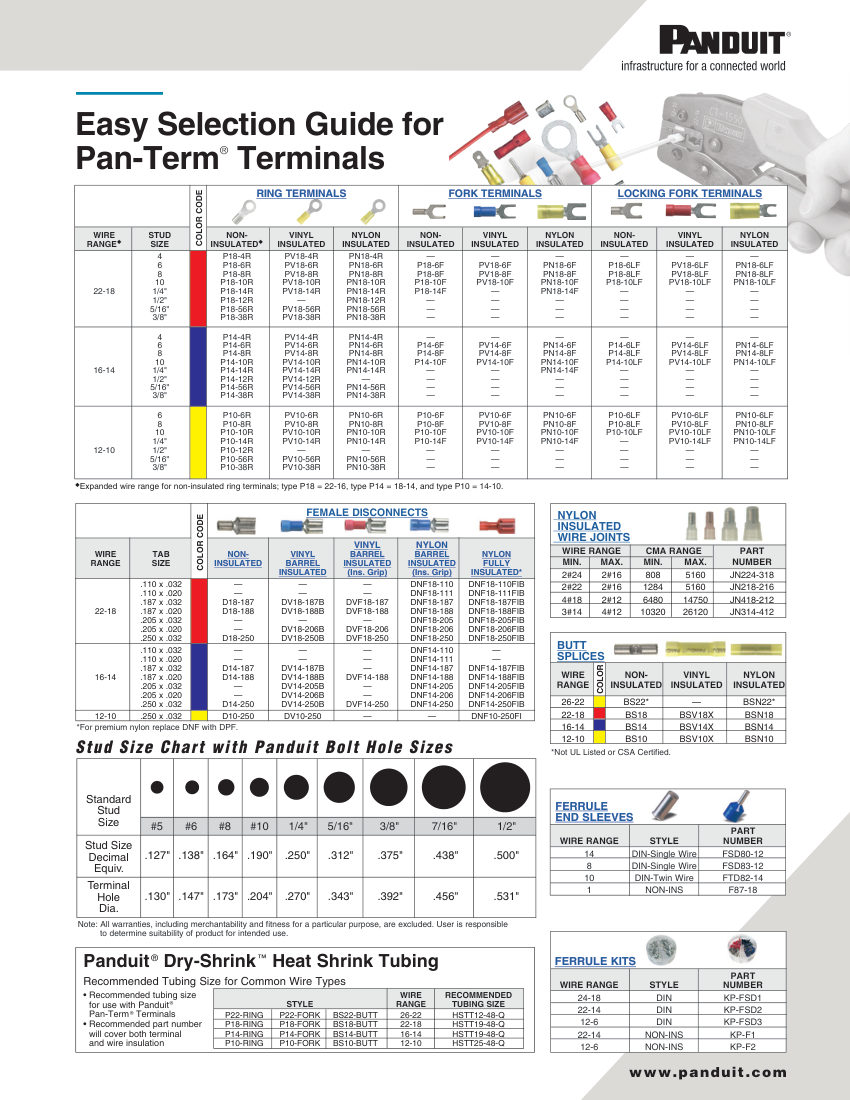

Panduit TMSG11--SA-ENG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
TMSG11--SA-ENG
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTMSG11--SA-ENG
DescriptionPanduit Wire Terminal Selection Guide (Electrical Terminals). Model TMSG11--SA-ENG. Covers Ring, Fork, and Locking Fork terminals; Includes Barrel and Female Disconnect terminals; Wire range supports 22 AWG to 10 AWG; Insulation options include Vinyl and Nylon. connectionSize: Wire Range 22-10 AWG; Stud Sizes 1/4" to 3/8"; Tab Sizes .110" to .250"
End connectionRing, Fork, Locking Fork, Barrel, Female Disconnect, Nylon Wire Joint
FinishNon-Insulated, Vinyl Insulated, Nylon Insulated.
