PanduitTX5500™ U/UTP Copper Cable COSP393TX5500

Panduit U/UTP Copper Cable (Structured Cabling). Model TX5500. Category 5e U/UTP cable; Flame rating CMR (UL 1666); Certified channel performance up to 100 meters; Swept frequencies up to 100 MHz. material: 24 AWG solid copper conductors, HDPE insulation, flame-retardant PVC jacket

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTX5500.pdfData sheet

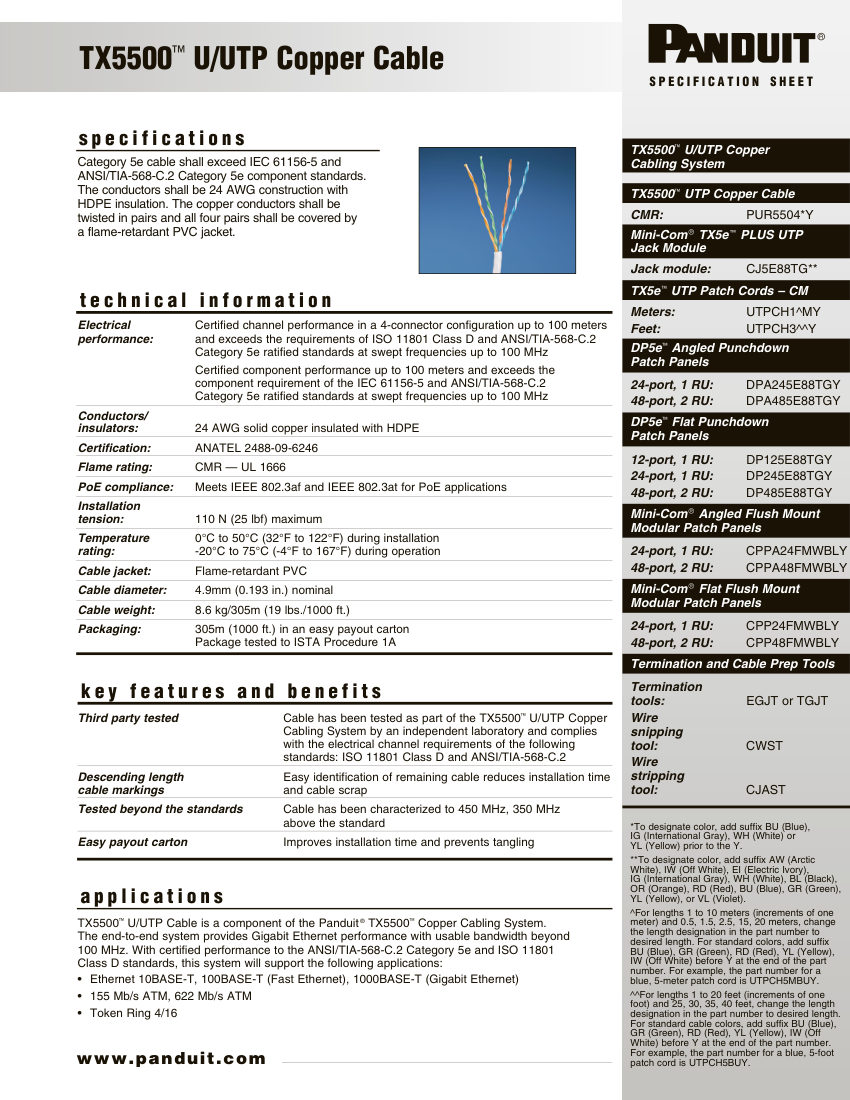

Panduit TX5500 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
TX5500
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTX5500
DescriptionPanduit U/UTP Copper Cable (Structured Cabling). Model TX5500. Category 5e U/UTP cable; Flame rating CMR (UL 1666); Certified channel performance up to 100 meters; Swept frequencies up to 100 MHz. material: 24 AWG solid copper conductors, HDPE insulation, flame-retardant PVC jacket
Dimensions4.9mm (0.193 in.) nominal diameter
ComplianceIEC 61156-5, ANSI/TIA-568-C.2 Category 5e, ISO 11801 Class D, ANATEL 2488-09-6246, UL 1666 CMR, IEEE 802.3af/at.
