PanduitTX6A-28

Panduit UTP Patch Cable (Structured Cabling). Model TX6A-28. Category 6A / Class EA performance up to 500 MHz; 28 AWG solid copper conductors; Unshielded Twisted Pair (UTP); Supports PoE IEEE 802.3af/at/bt. material: Solid Copper

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTX6A-28.pdfData sheet

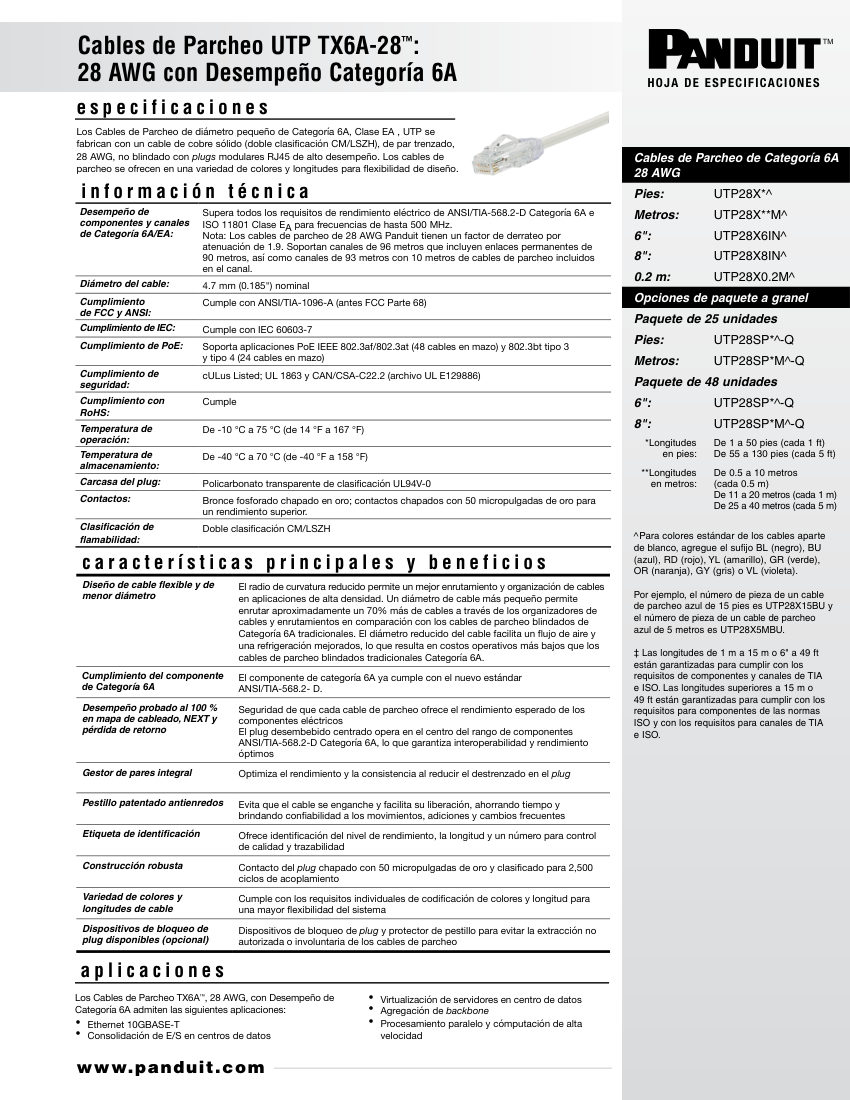

Panduit TX6A-28 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
TX6A-28
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTX6A-28
DescriptionPanduit UTP Patch Cable (Structured Cabling). Model TX6A-28. Category 6A / Class EA performance up to 500 MHz; 28 AWG solid copper conductors; Unshielded Twisted Pair (UTP); Supports PoE IEEE 802.3af/at/bt. material: Solid Copper
Connection sizeRJ45
End connectionRJ45 Modular Plugs
FinishTransparent Polycarbonate Plug Housing
Dimensions4.7 mm (0.185") nominal diameter
ComplianceANSI/TIA-568.2-D, ISO 11801 Class EA, UL 1863, CSA C22.2, RoHS.
