DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitUTG20

Panduit UTP Copper Cable (Structured Cabling). Model UTG20. Category 6A/Class EA performance up to 650 MHz; Supports 10GBASE-T transmission up to 100 meters; PoE performance up to 150m at 100W (IEEE 802.3bt); Vari-MaTriX HD technology for alien crosstalk suppression. material: 23 AWG solid copper conductors, FEP Plenum (CMP) insulation, Flame-retardant PVC jacket

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFUTG20.pdfData sheet

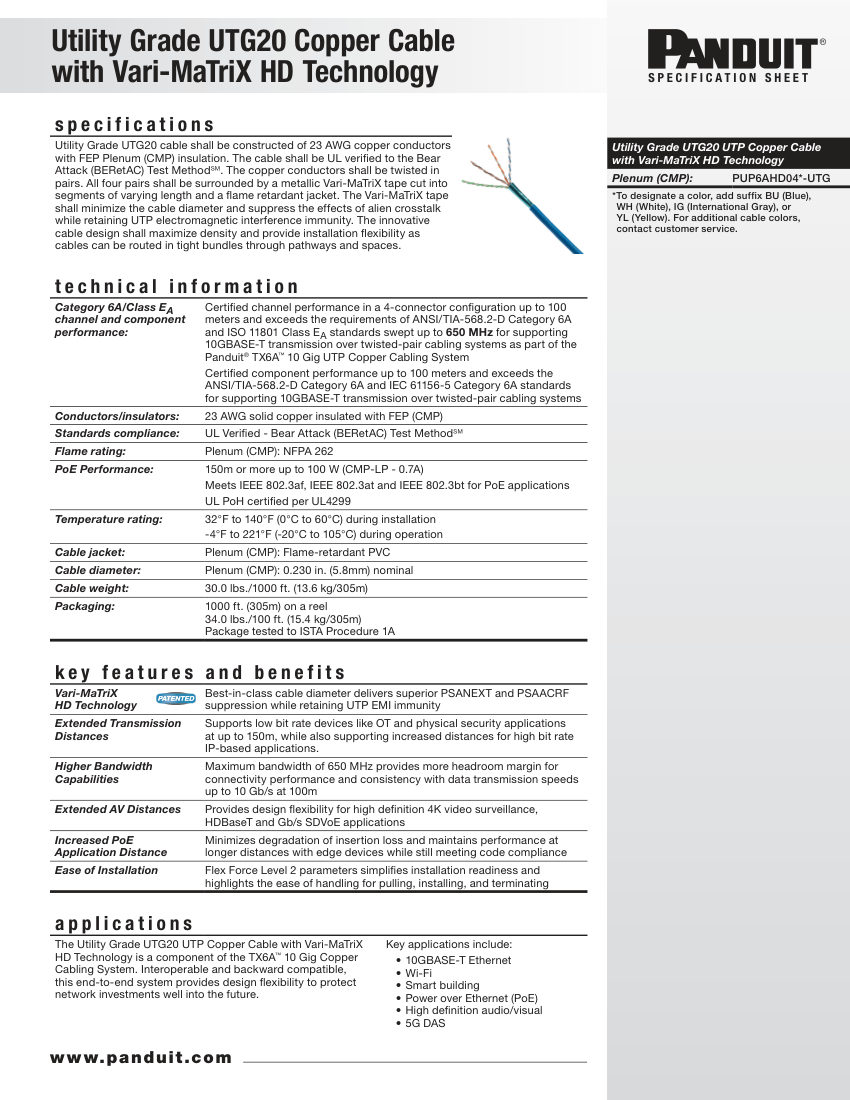

Panduit UTG20 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
UTG20
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberUTG20
DescriptionPanduit UTP Copper Cable (Structured Cabling). Model UTG20. Category 6A/Class EA performance up to 650 MHz; Supports 10GBASE-T transmission up to 100 meters; PoE performance up to 150m at 100W (IEEE 802.3bt); Vari-MaTriX HD technology for alien crosstalk suppression. material: 23 AWG solid copper conductors, FEP Plenum (CMP) insulation, Flame-retardant PVC jacket
Dimensions0.230 in. (5.8mm) nominal diameter
ComplianceANSI/TIA-568.2-D Category 6A, ISO 11801 Class EA, UL Verified Bear Attack (BERetAC), NFPA 262
Voltage80 V maximum operating voltage.
