DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsLFB6090-SS, LFB6091-SS (French)0450156

Watts Lead-free Bronze Full-Port Ball Valve (Ball Valves). Model LFB6090-SS, LFB6091-SS. Two-piece construction with non-injectable stem; Adjustable stem packing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF0450156.pdfData sheet

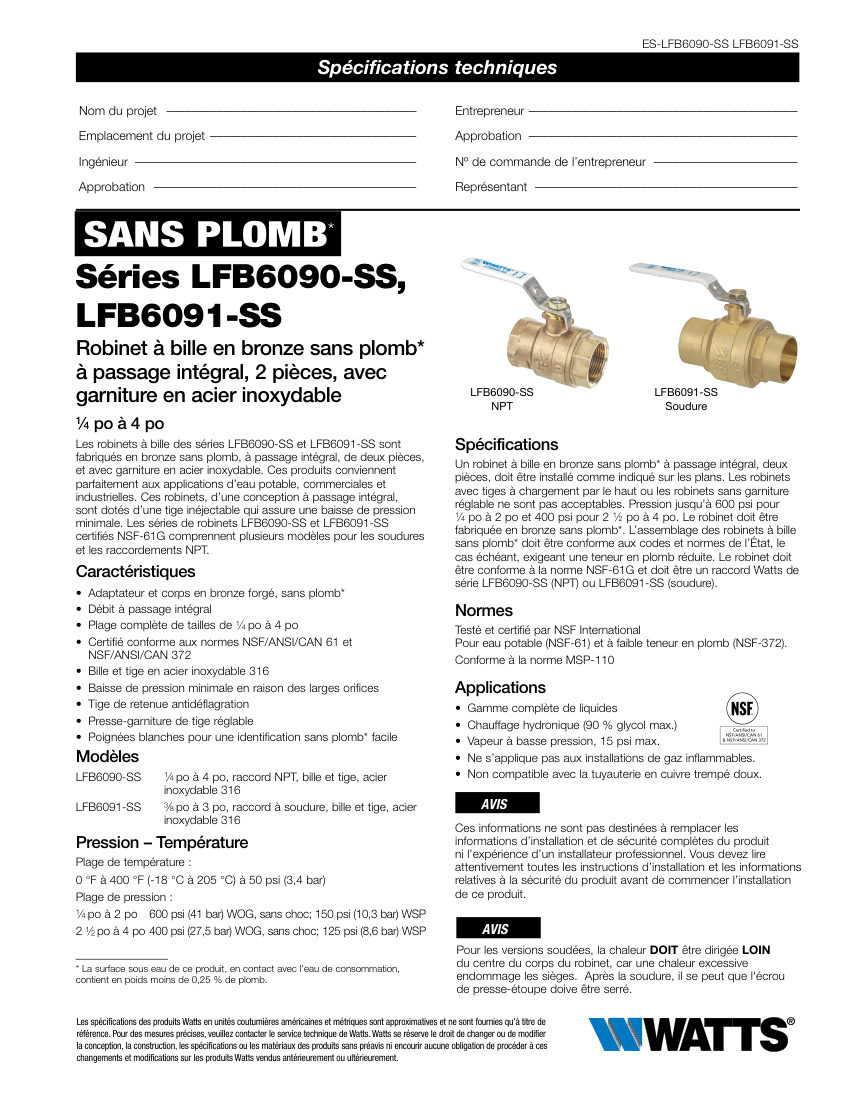

Watts 0450156 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
0450156
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number0450156
DescriptionWatts Lead-free Bronze Full-Port Ball Valve (Ball Valves). Model LFB6090-SS, LFB6091-SS. Two-piece construction with non-injectable stem; Adjustable stem packing
Temperature range0°F to 400°F (-18°C to 205°C) at 50 psi; Suitable for potable water, hydronic heating (90% glycol max), and low-pressure steam (15 psi max). material: Lead-free forged bronze body, 316 stainless steel ball and stem
Connection size1/4 in to 4 in (NPT), 3/8 in to 3 in (Weld)
End connectionNPT (LFB6090-SS), Weld (LFB6091-SS)
Pressure Rating600 psi (1/4-2 in), 400 psi (2.5-4 in)
Flow RateFull port; compliance:

Also cataloged as: 0450157, 0450158, 0450159, 0450160, 0450161, 0450162, 0450163, 0450171, 0450172, 0450173, 0450164
