DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsSL100XL, L100XL, LL100XL, LLL100XL100XL

Watts Self-closing T&P Relief Valve (Temperature & Pressure Relief Valves). Model SL100XL, L100XL, LL100XL, LLL100XL. Temperature relief set at 210°F (99°C); Rated for water heaters up to 105,000 BTU/Hr; Thermostat must be immersed in top 6" (152mm) of tank; Vertical discharge line must be installed downward. material: All brass body, stainless steel spring

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF100XL.pdfData sheet

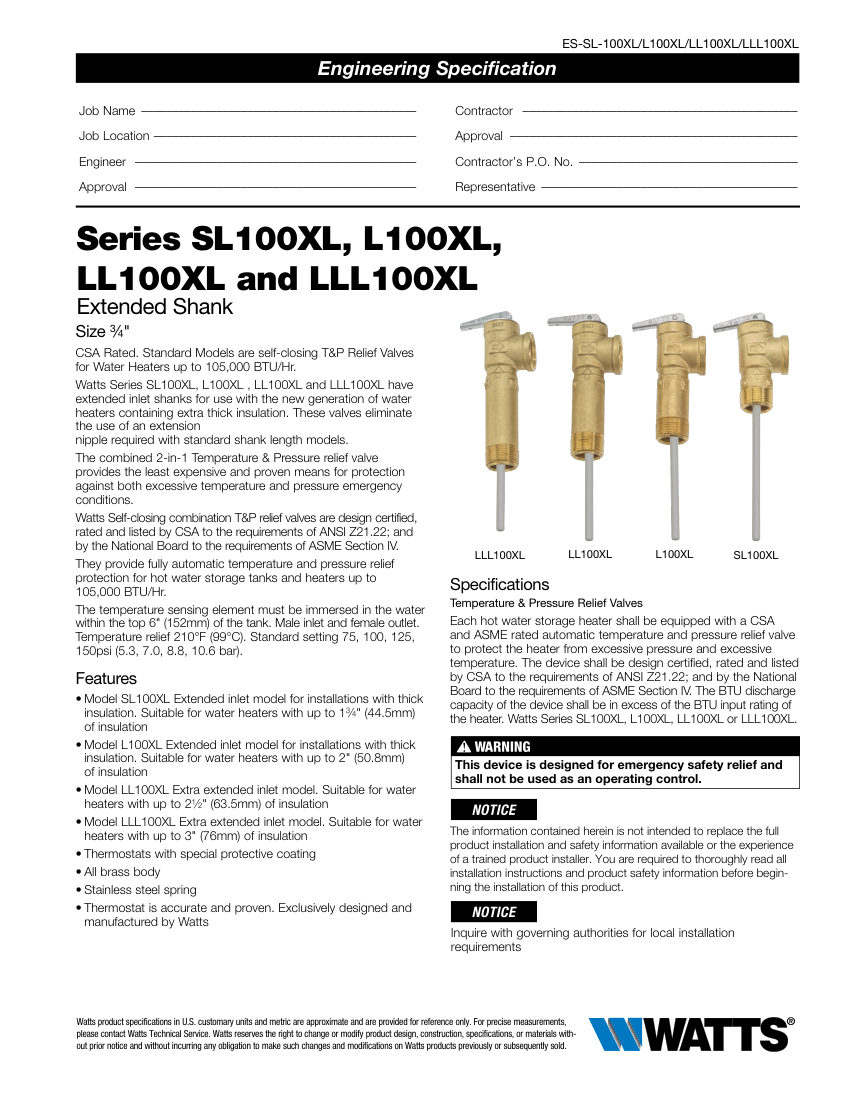

Watts 100XL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
100XL
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number100XL
DescriptionWatts Self-closing T&P Relief Valve (Temperature & Pressure Relief Valves). Model SL100XL, L100XL, LL100XL, LLL100XL. Temperature relief set at 210°F (99°C); Rated for water heaters up to 105,000 BTU/Hr; Thermostat must be immersed in top 6" (152mm) of tank; Vertical discharge line must be installed downward. material: All brass body, stainless steel spring
Connection size3/4"
End connectionMale inlet, female outlet
Pressure Rating75, 100, 125, 150 psi (5.3, 7.0, 8.8, 10.6 bar)
MountingExtended shank for water heaters with 1.75" to 3" insulation
ComplianceCSA, ANSI Z21.22, ASME Sec

Also cataloged as: SL100XL, L100XL, LL100XL, LLL100XL, 100XL-S, 100XL-L, 100XL-LL, 100XL-LLL
