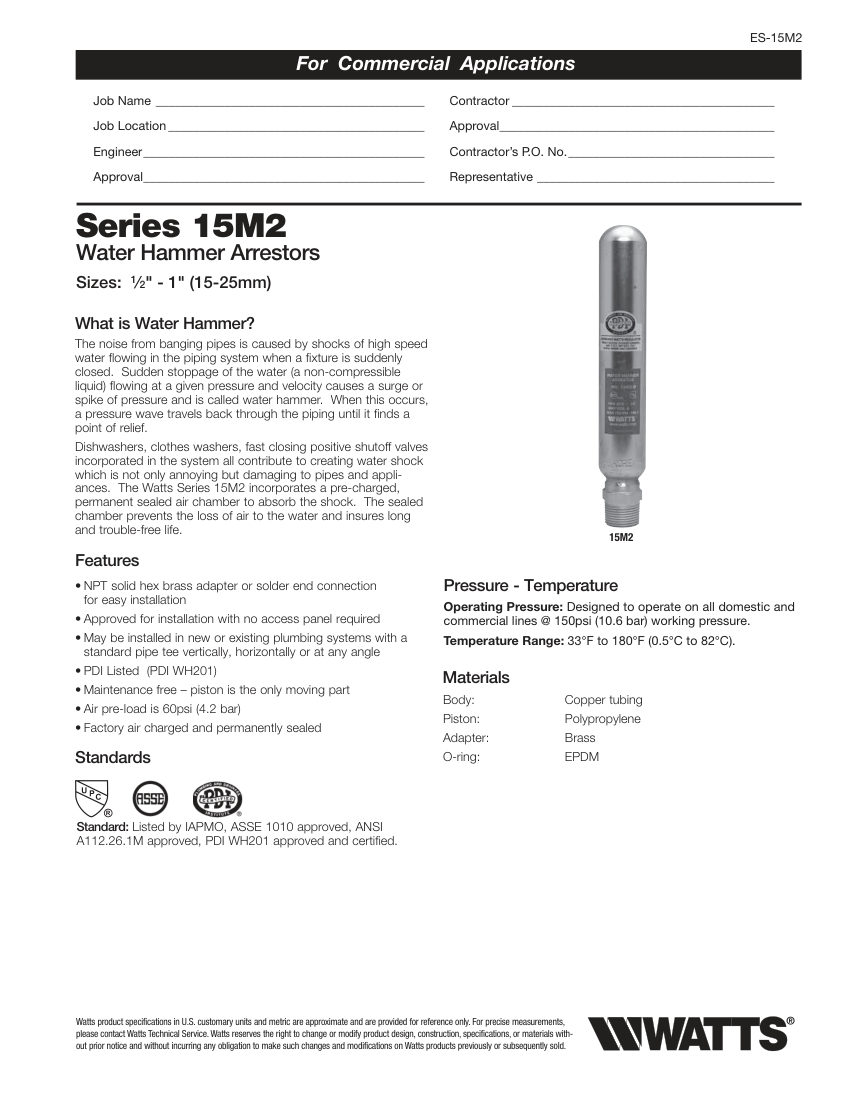

Watts15M2

Name: Watts 15M2
Brand: Watts
SKU: 15M2

Watts Water Hammer Arrestor (Water Hammer Arrestors). Model 15M2. Pre-charged permanent sealed air chamber; Air pre-load is 60psi (4.2 bar)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	15M2
Description	Watts Water Hammer Arrestor (Water Hammer Arrestors). Model 15M2. Pre-charged permanent sealed air chamber; Air pre-load is 60psi (4.2 bar)
Temperature range	33°F to 180°F (0.5°C to 82°C); Maintenance free with piston as only moving part. material: Copper tubing body, Brass adapter, Polypropylene piston, EPDM O-ring
Connection size	1/2" - 1" (15-25mm)
End connection	NPT solid hex brass adapter or solder end
Pressure Rating	150psi (10.6 bar) working pressure
Mounting	Vertical, horizontal, or at any angle via standard pipe tee
Compliance	IAPMO, ASSE 1010, ANSI A112.26.1M, PDI WH201.

Also cataloged as: 0750140, 0750141, 0750142, 0750143, 0750144, 0750145, 15M2-15M2-A, 15M2-15M2-B, 15M2-15M2-C, 15M2-15M2-D, 15M2-15M2-E
