DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsBF 03

Watts Butterfly Valve (Butterfly Valves). Model BF-03-M2, BF-04-M2. Lead free; EPDM, Buna-N, or Viton seat materials; Phenolic-backed seat (2"-12") or aluminum-backed seat (14"-24"); 100% shell testing at 1.5 times rated pressure. material: Ductile iron body, Ductile iron/Aluminum bronze/316SS disc, 416SS/316SS shaft

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBF-03.pdfData sheet

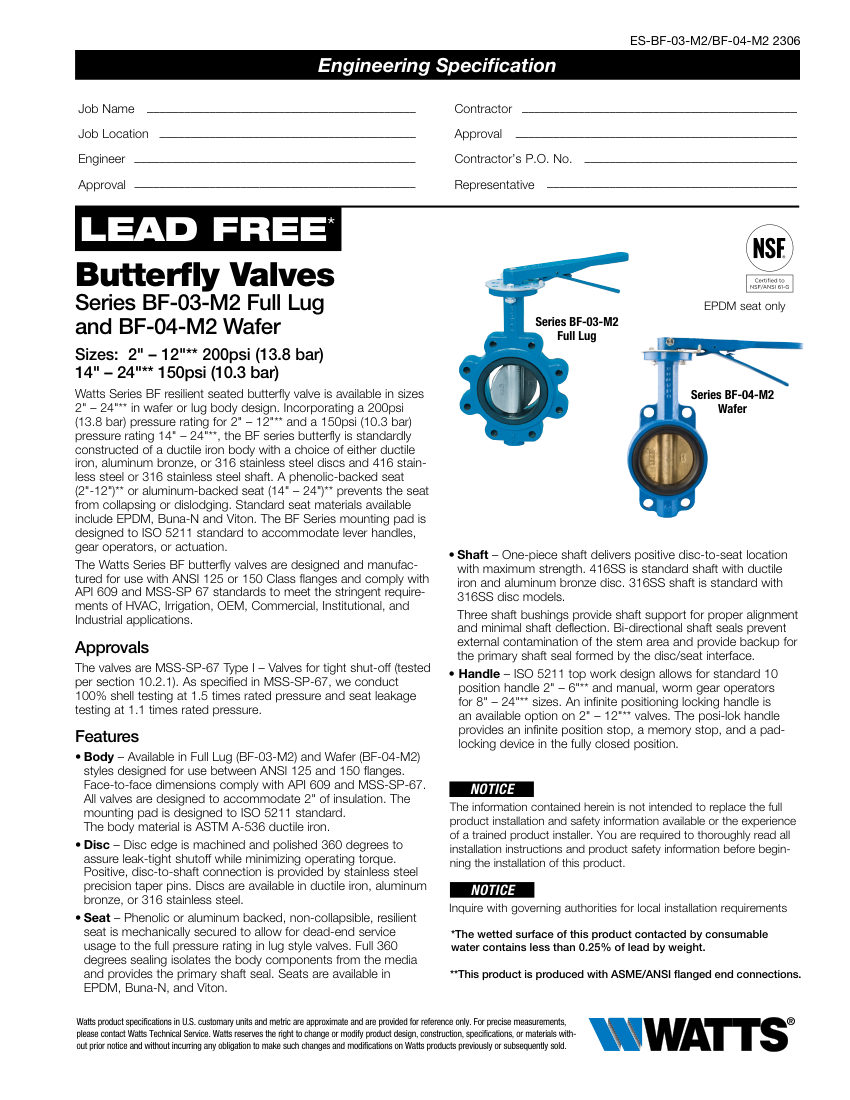

Watts BF 03 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
BF 03
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBF 03
DescriptionWatts Butterfly Valve (Butterfly Valves). Model BF-03-M2, BF-04-M2. Lead free; EPDM, Buna-N, or Viton seat materials; Phenolic-backed seat (2"-12") or aluminum-backed seat (14"-24"); 100% shell testing at 1.5 times rated pressure. material: Ductile iron body, Ductile iron/Aluminum bronze/316SS disc, 416SS/316SS shaft
Connection size2" – 24"
End connectionANSI 125 or 150 Class flanges
Pressure Rating200psi (13.8 bar) for 2"-12", 150psi (10.3 bar) for 14"-24"
MountingFull Lug (BF-03-M2) or Wafer (BF-04-M2), ISO 5211 top work
DimensionsFace-to-face complies with API 609 and MSS-SP-67.

Also cataloged as: BF 04, BF 1, BF 2, BF 3, BF 0, BF 5
