WattsCA-550

Watts Service Sink Carrier (Service Sink). Model CA-550. Heavy gauge steel uprights with integral welded feet; Epoxy coated cast iron fitting and faceplate; Adjustable ABS nipple with integral test cap and neoprene gasket; Requires anchoring to concrete floor with minimum 1/2" lag bolts. material: Heavy gauge steel, cast iron, ABS

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCA-550.pdfData sheet

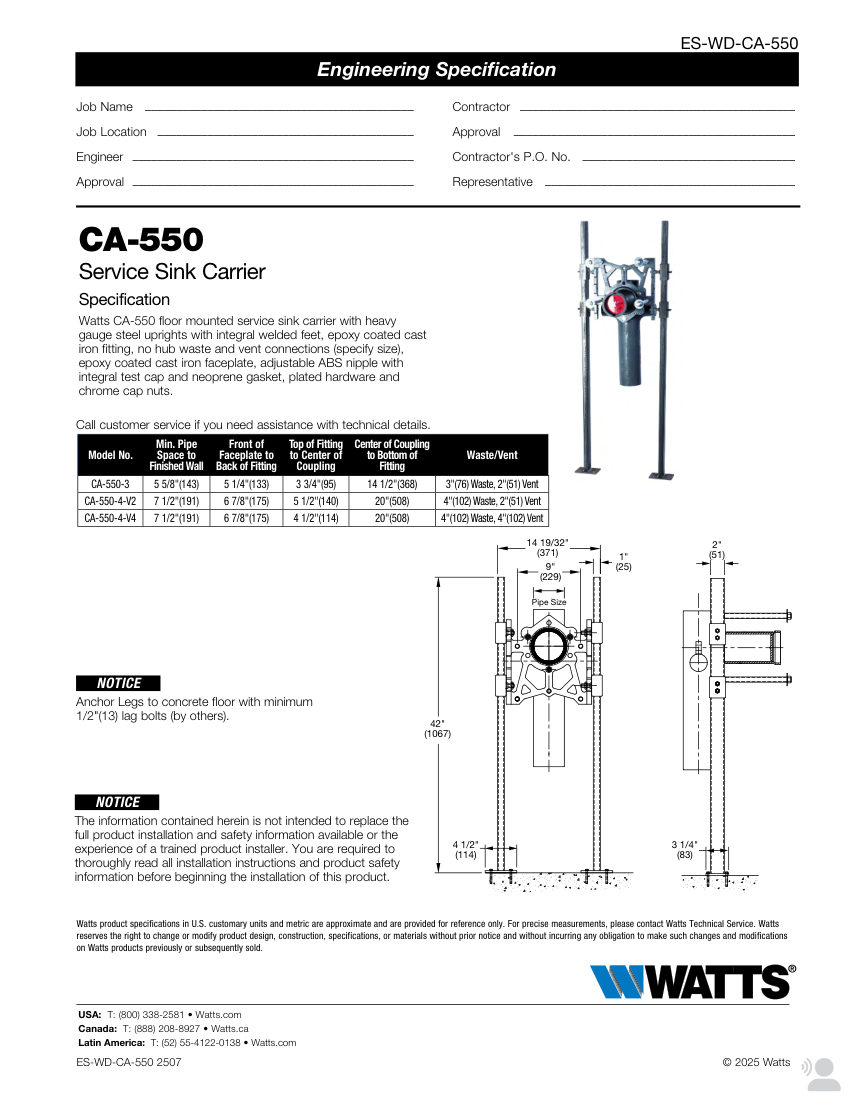

Watts CA-550 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
CA-550
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCA-550
DescriptionWatts Service Sink Carrier (Service Sink). Model CA-550. Heavy gauge steel uprights with integral welded feet; Epoxy coated cast iron fitting and faceplate; Adjustable ABS nipple with integral test cap and neoprene gasket; Requires anchoring to concrete floor with minimum 1/2" lag bolts. material: Heavy gauge steel, cast iron, ABS
Connection size3" Waste / 2" Vent (CA-550-3), 4" Waste / 2" Vent (CA-550-4-V2), 4" Waste / 4" Vent (CA-550-4-V4)
End connectionNo hub waste and vent connections
FinishEpoxy coated, plated hardware
MountingFloor mounted
Dimensions42" (1067) height, 14 19/

Also cataloged as: CA-550-3, CA-550-4-V2, CA-550-4-V4
