DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsCO-200-TS

Watts Floor Cleanout with Square Top, Tile Recess (Floor Cleanout). Model CO-200-TS. Square adjustable gasketed nickel bronze top with tile recess; Removable gas tight gasketed brass cleanout plug

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCO-200-TS.pdfData sheet

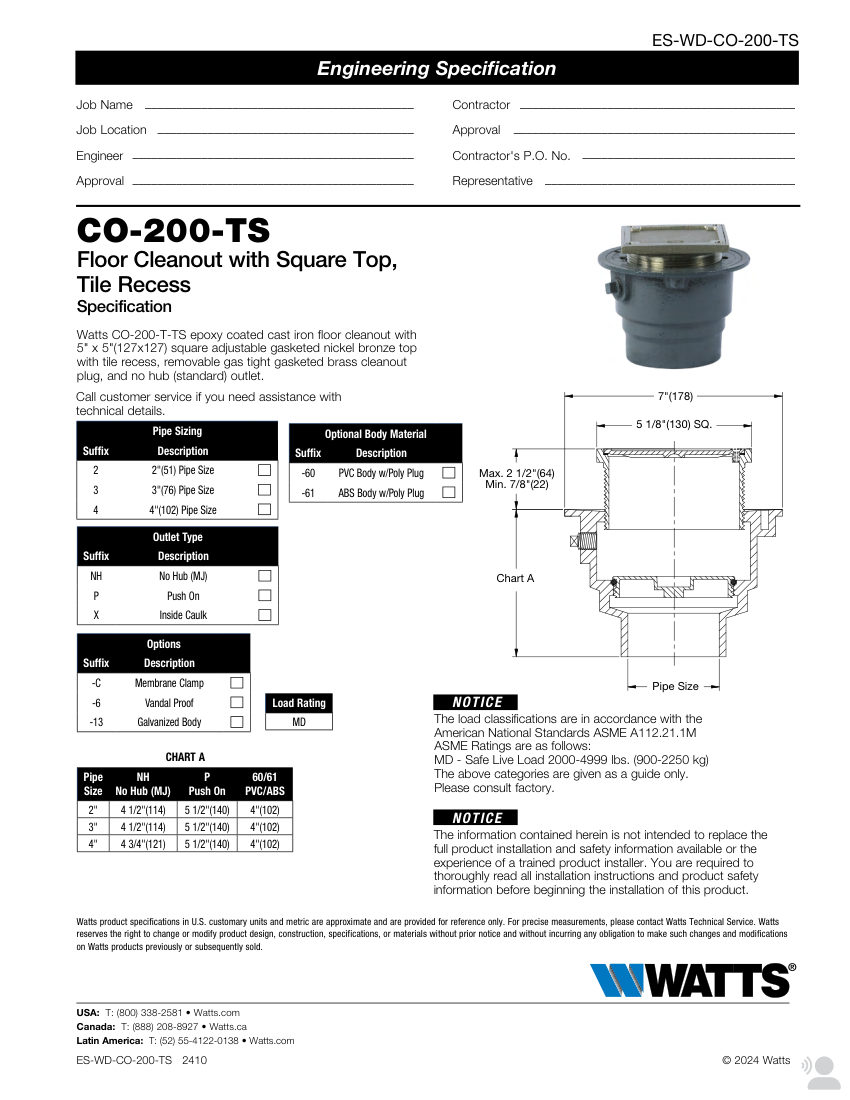

Watts CO-200-TS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
CO-200-TS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCO-200-TS
DescriptionWatts Floor Cleanout with Square Top, Tile Recess (Floor Cleanout). Model CO-200-TS. Square adjustable gasketed nickel bronze top with tile recess; Removable gas tight gasketed brass cleanout plug
Load Rating MDSafe Live Load 2000-4999 lbs (900-2250 kg); Optional PVC or ABS body with poly plug available. material: Epoxy coated cast iron body, nickel bronze top, brass plug
Connection size2" (51 mm), 3" (76 mm), or 4" (102 mm)
End connectionNo Hub (MJ), Push On, or Inside Caulk
FinishEpoxy coated
MountingFloor
Dimensions7" x 7" (178 x 178 mm) top, 5 1/8" x 5 1/8" (130 x 130 mm) s

Also cataloged as: CO-200-TS-2, CO-200-TS-3, CO-200-TS-4, CO-200-TS-NH, CO-200-TS-P, CO-200-TS-X, CO-200-TS--60, CO-200-TS--61, CO-200-TS--C, CO-200-TS--6, CO-200-TS--13
