DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsCO20

Watts Cast Iron Adjustable Floor Cleanout (Floor Cleanout). Model CO20. Adjustable floor cleanout with removable gasketed plug; Available in 2-inch, 3-inch, and 4-inch pipe sizes; Top options include Nickel Bronze, Ductile Iron, or Stainless Steel; Non-skid top surface. material: Cast Iron

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCO20.pdfData sheet

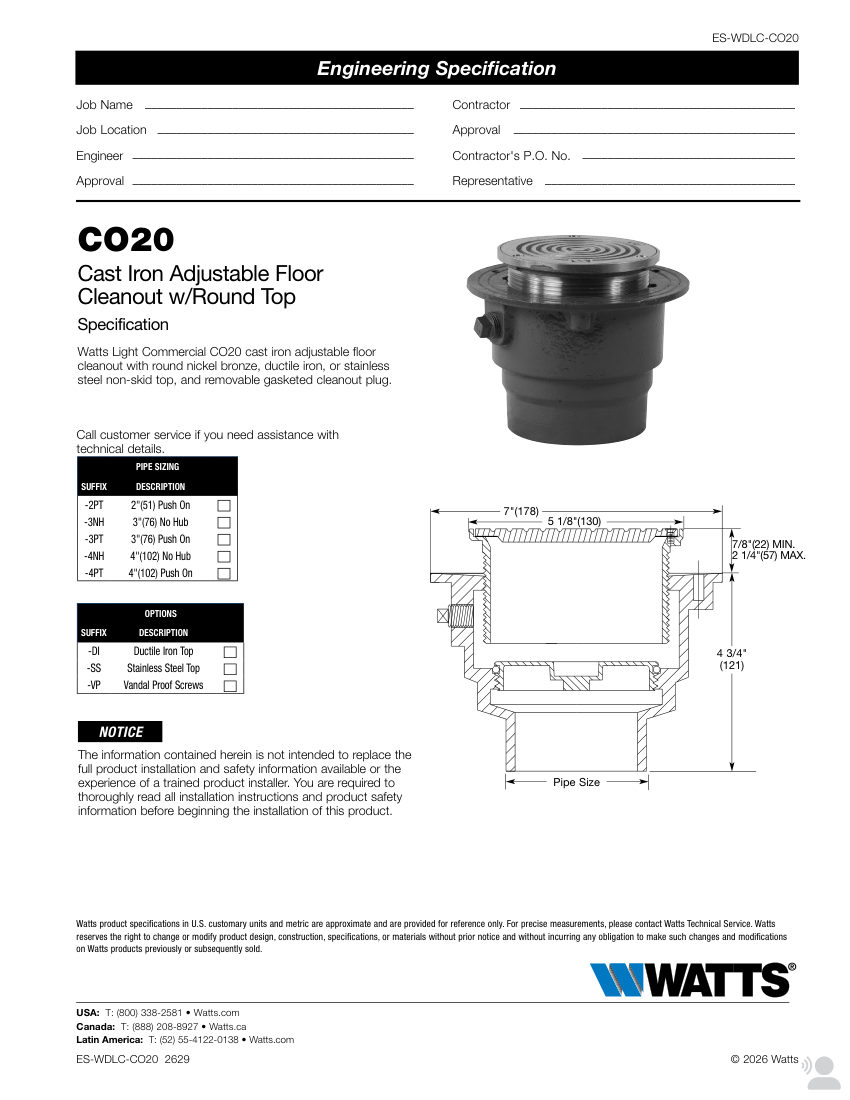

Watts CO20 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
CO20
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCO20
DescriptionWatts Cast Iron Adjustable Floor Cleanout (Floor Cleanout). Model CO20. Adjustable floor cleanout with removable gasketed plug; Available in 2-inch, 3-inch, and 4-inch pipe sizes; Top options include Nickel Bronze, Ductile Iron, or Stainless Steel; Non-skid top surface. material: Cast Iron
Connection size2" (51) Push On, 3" (76) No Hub, 3" (76) Push On, 4" (102) No Hub, 4" (102) Push On
End connectionPush On, No Hub
FinishRound Nickel Bronze, Ductile Iron, or Stainless Steel Non-Skid Top
MountingFloor
Dimensions7" (178) x 7" (178) x 5 1/8" (130) min/max height 22-1/4" (57) to 44-3

Also cataloged as: CO20--2PT, CO20--3NH, CO20--3PT, CO20--4NH, CO20--4PT, CO20--DI, CO20--SS, CO20--VP
