DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsCS-S-UT-1/2

Watts Combination check/stop/strainer valve (Check Stop Valves). Model Series CS. Performs triple duty as check valve, shutoff valve, and strainer; Designed for hot and cold water inlet supplies for mixing and tempering valves; Protects against cross flow of hot and cold water; Integral fine strainer protects against dirt and debris. material: Bronze body, EPDM O-rings/disc, Stainless steel strainer/spring, Brass screw

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCS-S-UT-1-2.pdfData sheet

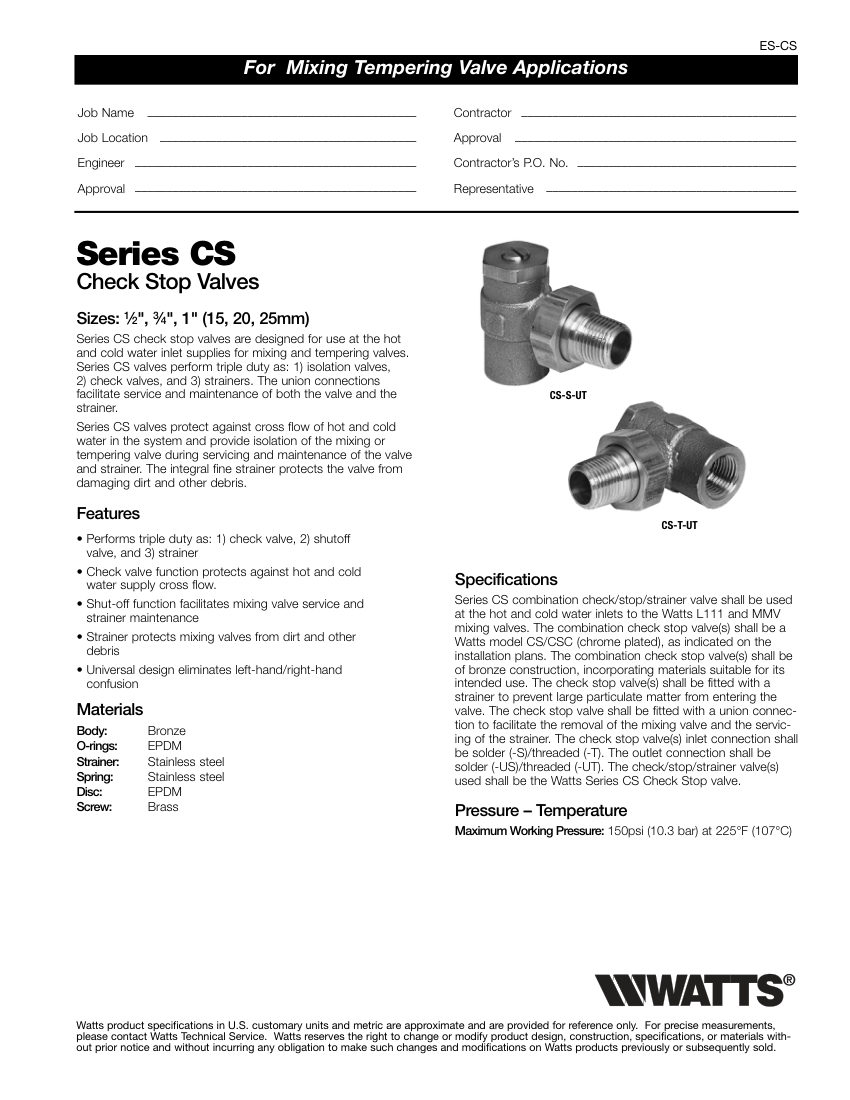

Watts CS-S-UT-1/2 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
CS-S-UT-1/2
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCS-S-UT-1/2
DescriptionWatts Combination check/stop/strainer valve (Check Stop Valves). Model Series CS. Performs triple duty as check valve, shutoff valve, and strainer; Designed for hot and cold water inlet supplies for mixing and tempering valves; Protects against cross flow of hot and cold water; Integral fine strainer protects against dirt and debris. material: Bronze body, EPDM O-rings/disc, Stainless steel strainer/spring, Brass screw
Connection size1/2", 3/4", 1" (15, 20, 25mm)
End connectionInlet: Solder (-S) or Threaded (-T)
OutletSolder (-US) or Threaded (-UT)
Pressure Rating150psi (10.3 bar) at

Also cataloged as: CS-T-UT-1/2, CSC-S-UT-1/2, CSC-T-UT-1/2, CS-S-US-3/4, CS-T-UT-3/4, CSC-S-US-3/4, CSC-T-UT-3/4, CS-T-UT-1, CSC-T-UT-1, CS-1/2, CS-3/4
