DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsCSM-91 Insulation SystemsCSM-91-INS

Watts Valve Insulation Kit (Insulation Systems). Model CSM-91-INS. Designed for Watts CSM-91 circuit balancing valves and TDV Triple Duty Combination Valves; Flame spread rating of 50 or less; Suitable for maximum fluid design operating temperatures of 141°F – 200°F (61°C – 93°C); Mean rating temperature of 125°F (52°C). material: Zeston 2000 PVC shell, Mineral Fiberglass insulation, Stainless steel fasteners

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCSM-91-INS.pdfData sheet

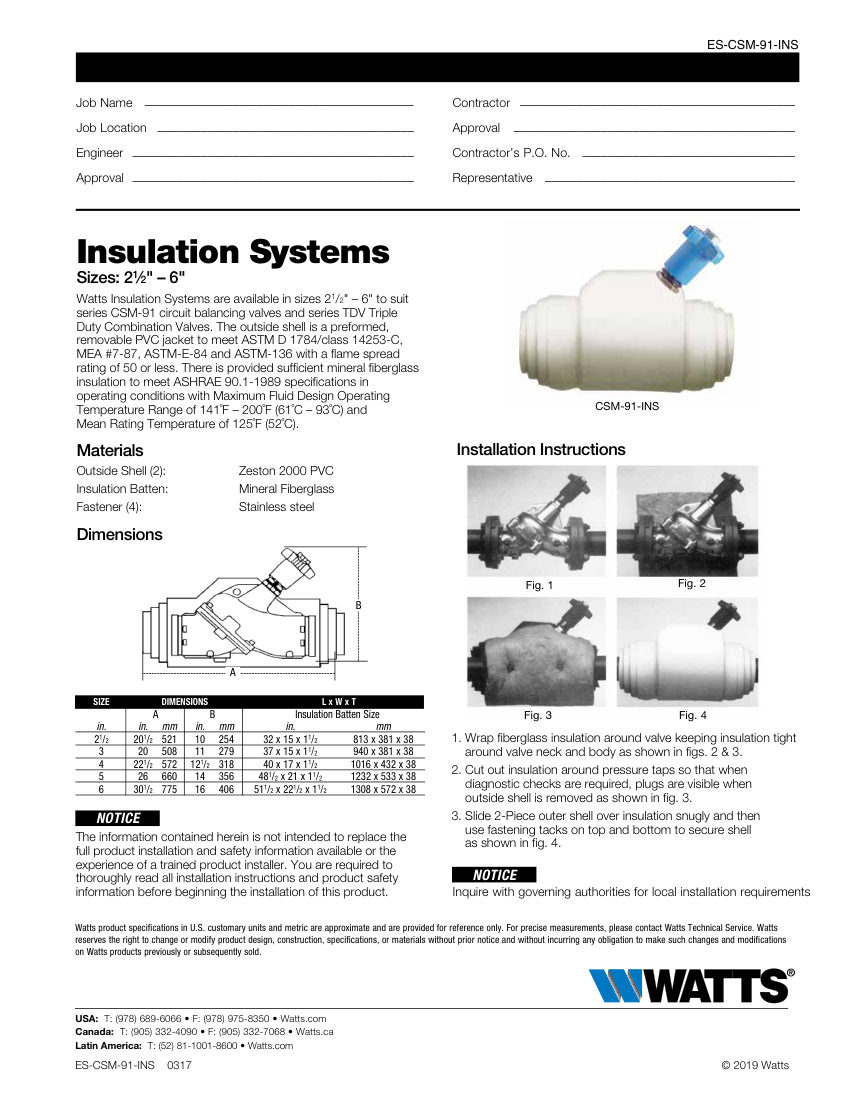

Watts CSM-91-INS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
CSM-91-INS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCSM-91-INS
DescriptionWatts Valve Insulation Kit (Insulation Systems). Model CSM-91-INS. Designed for Watts CSM-91 circuit balancing valves and TDV Triple Duty Combination Valves; Flame spread rating of 50 or less; Suitable for maximum fluid design operating temperatures of 141°F – 200°F (61°C – 93°C); Mean rating temperature of 125°F (52°C). material: Zeston 2000 PVC shell, Mineral Fiberglass insulation, Stainless steel fasteners
Connection size2.5" – 6"
Mounting2-piece removable shell with 4 stainless steel fasteners
DimensionsVaries by size (e.g., 2.5" size: 20.5" x 10" x 1.5")
ComplianceASTM D 1784,
