DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsStainless Steel ManifoldsD38

Watts Stainless Steel Manifold (Radiant Heating). Model D3803002SS - D3807605SS. Trunk material is ANSI 304 Stainless Steel; Available in 1" and 1-1/2" trunk sizes; Includes integral flow meters, isolation, and balance valves; Max operating temperature is 176°F (80°C). material: ANSI 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFD38.pdfData sheet

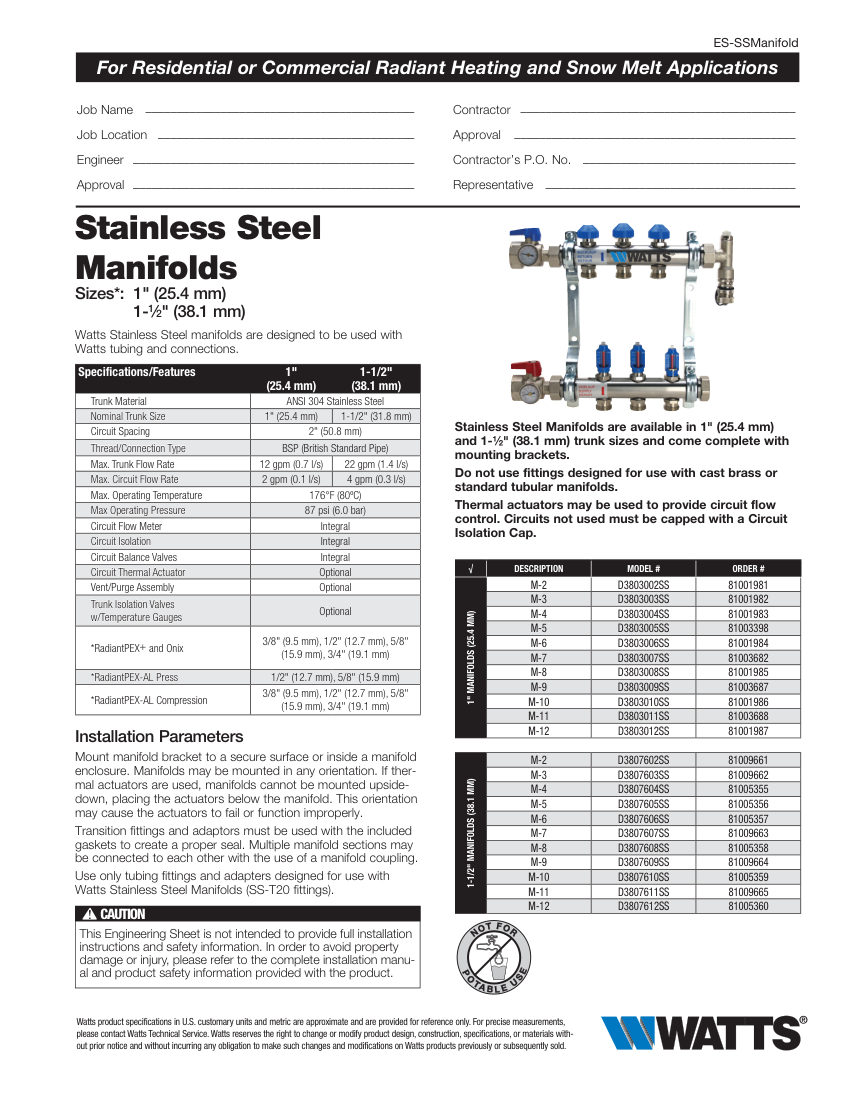

Watts D38 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
D38
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberD38
DescriptionWatts Stainless Steel Manifold (Radiant Heating). Model D3803002SS - D3807605SS. Trunk material is ANSI 304 Stainless Steel; Available in 1" and 1-1/2" trunk sizes; Includes integral flow meters, isolation, and balance valves; Max operating temperature is 176°F (80°C). material: ANSI 304 Stainless Steel
Connection size1" (25.4 mm), 1-1/2" (38.1 mm)
End connectionBSP (British Standard Pipe)
Pressure Rating87 psi (6.0 bar)
Flow RateMax Trunk: 12 gpm (1") / 22 gpm (1-1/2")
Max Circuit2 gpm (1") / 4 gpm (1-1/2")
MountingBracket included, any orientation (except upside-down with actua

Also cataloged as: 81001981, 81001982, 81001983, 81003398, 81001984, 81003682, 81001985, 81003687, 81001986, 81003688, 81001987
