WattsHydroNex - Geo Series PanelDIH- -2

Watts Hydronic manifold panel (HydroNex). Model ES-WR-HydroNex DVIP Hybrid. Uses injection reset mixing to modulate supply fluid temperature; Includes Tekmar 361 injection/reset control; Circulator options include Watts Radiant 15-58, Taco 007, or Bell and Gossett NRF-22; Field-selectable high temperature and mix zones. material: White powder coated back panel and cover

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDIH---2.pdfData sheet

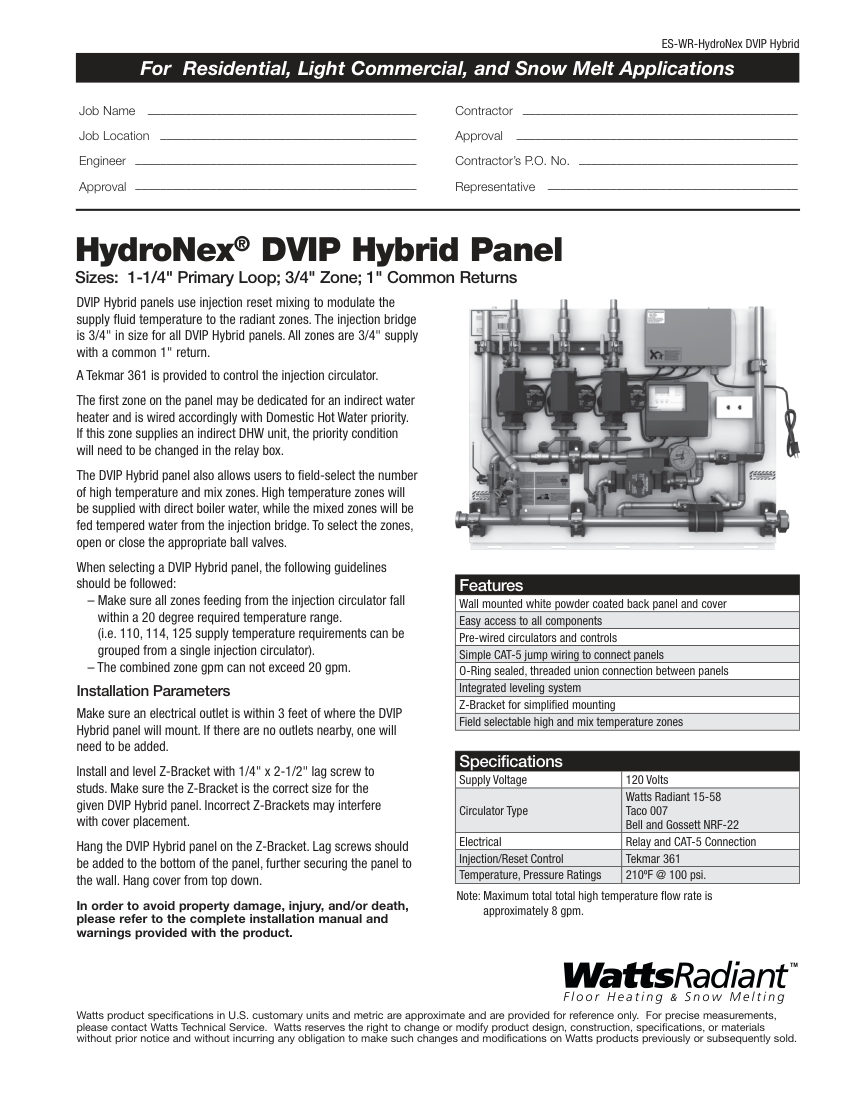

Watts DIH- -2 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
DIH- -2
Product type
Plumbing
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDIH- -2
DescriptionWatts Hydronic manifold panel (HydroNex). Model ES-WR-HydroNex DVIP Hybrid. Uses injection reset mixing to modulate supply fluid temperature; Includes Tekmar 361 injection/reset control; Circulator options include Watts Radiant 15-58, Taco 007, or Bell and Gossett NRF-22; Field-selectable high temperature and mix zones. material: White powder coated back panel and cover
Connection size1-1/4" Primary Loop; 3/4" Zone; 1" Common Returns
End connectionO-Ring sealed, threaded union
Pressure Rating100 psi
Flow RateMax 20 gpm combined zone; Max 8 gpm high temperature
FinishWhite.

Also cataloged as: DIH- -3, DIH- -4, DIH- -5, DIH--2, DIH--3, DIH--4, DIH--5
