WattsFD-1100-A-LR

Watts Floor Drain with Ligature Resistant Round Strainer (Floor Drain). Model FD-1100-A-LR. Epoxy coated cast iron body with anchor flange; Fabricated stainless steel ligature resistant strainer; Standard No Hub (MJ) outlet with vandal proof screws

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFD-1100-A-LR.pdfData sheet

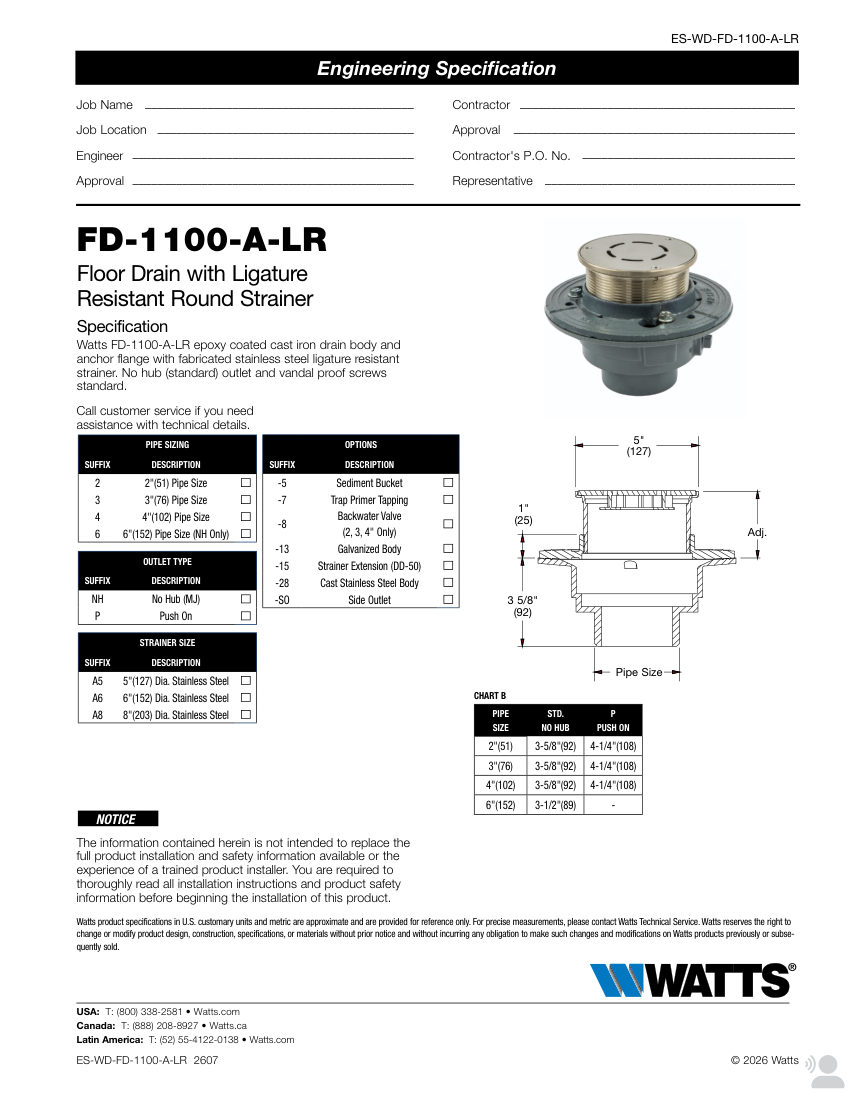

Watts FD-1100-A-LR cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
FD-1100-A-LR
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFD-1100-A-LR
DescriptionWatts Floor Drain with Ligature Resistant Round Strainer (Floor Drain). Model FD-1100-A-LR. Epoxy coated cast iron body with anchor flange; Fabricated stainless steel ligature resistant strainer; Standard No Hub (MJ) outlet with vandal proof screws
Available pipe sizes2", 3", 4", and 6". material: Epoxy coated cast iron drain body and anchor flange; fabricated stainless steel strainer
Connection size2" (51), 3" (76), 4" (102), 6" (152)
End connectionNo Hub (MJ) or Push On
FinishEpoxy coated
MountingAnchor flange
DimensionsStrainer: 5" (127) Dia.
Body5" (127) x 5" (127); Heig

Also cataloged as: FD-1100-A-LR-2, FD-1100-A-LR-3, FD-1100-A-LR-4, FD-1100-A-LR-6, FD-1100-A-LR-NH, FD-1100-A-LR-P, FD-1100-A-LR-A5, FD-1100-A-LR-A6, FD-1100-A-LR-A8, FD-1100-A-LR--5, FD-1100-A-LR--7
