DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsGRD-680GRD-680

Watts Green Roof Planter Drain (Drainage). Model GRD-680. Includes perforated stainless steel gravel guard; Features 8" x 8" top assembly with heel-proof ductile iron grate; Available with options for all nickel bronze top or vandal proof top; Deck opening is 6 1/2" (165 mm) or 8" (203 mm) with sump receiver. material: Epoxy coated cast iron body, ductile iron grate, stainless steel gravel guard

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFGRD-680.pdfData sheet

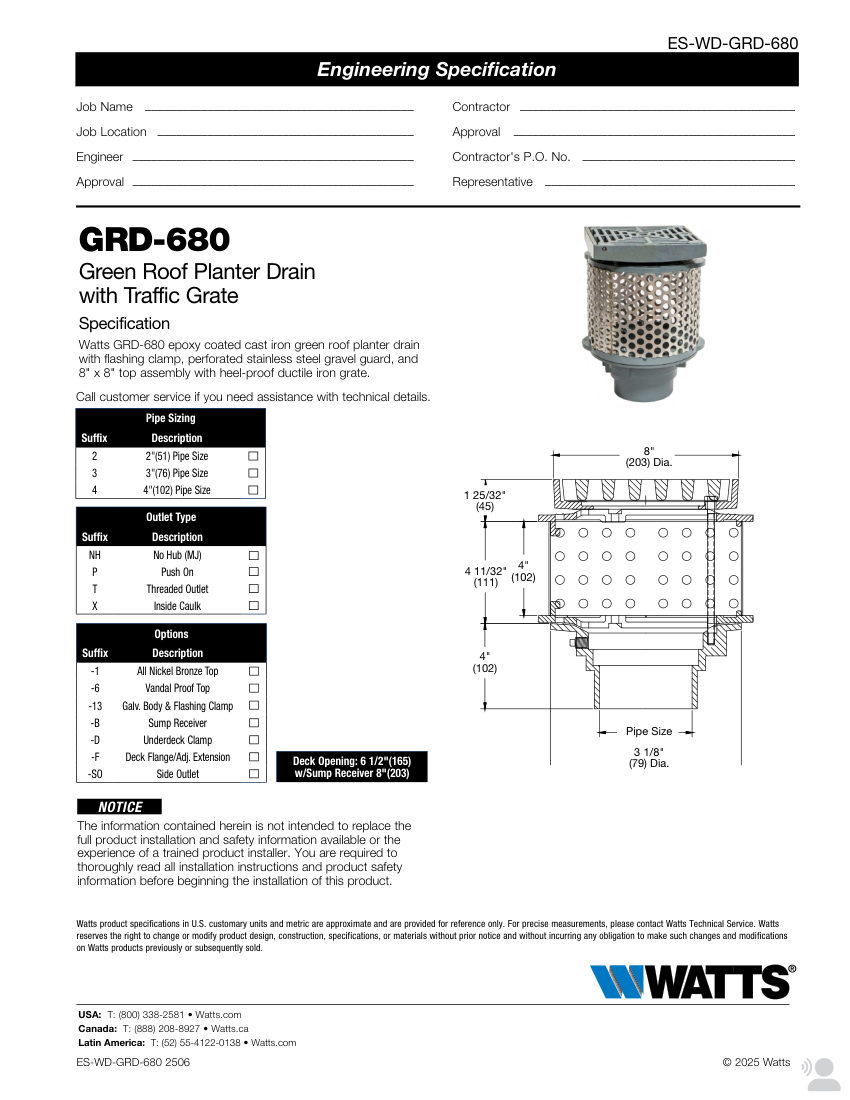

Watts GRD-680 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
GRD-680
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberGRD-680
DescriptionWatts Green Roof Planter Drain (Drainage). Model GRD-680. Includes perforated stainless steel gravel guard; Features 8" x 8" top assembly with heel-proof ductile iron grate; Available with options for all nickel bronze top or vandal proof top; Deck opening is 6 1/2" (165 mm) or 8" (203 mm) with sump receiver. material: Epoxy coated cast iron body, ductile iron grate, stainless steel gravel guard
Connection size2", 3", or 4" pipe size
End connectionNo Hub (MJ), Push On, Threaded Outlet, or Inside Caulk
FinishEpoxy coated
MountingWith flashing clamp
Dimensions8" x 8" top assembly, 1

Also cataloged as: GRD-680-2, GRD-680-3, GRD-680-4, GRD-680-NH, GRD-680-P, GRD-680-T, GRD-680-X, GRD-680--1, GRD-680--6, GRD-680--13, GRD-680--B
