DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsISCA-133-L/R/2ISCA-133-L/R/2

Watts Water Closet Carrier (Closet Carrier). Model ISCA-133-L/R/2. 750 lb. load capacity; Adjustable for standard and wheelchair height; Includes integral test cap and neoprene bowl gasket; Side inlet configuration (L/R/2). material: Epoxy coated cast iron, ductile iron, ABS, stainless steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFISCA-133-L-R-2.pdfData sheet

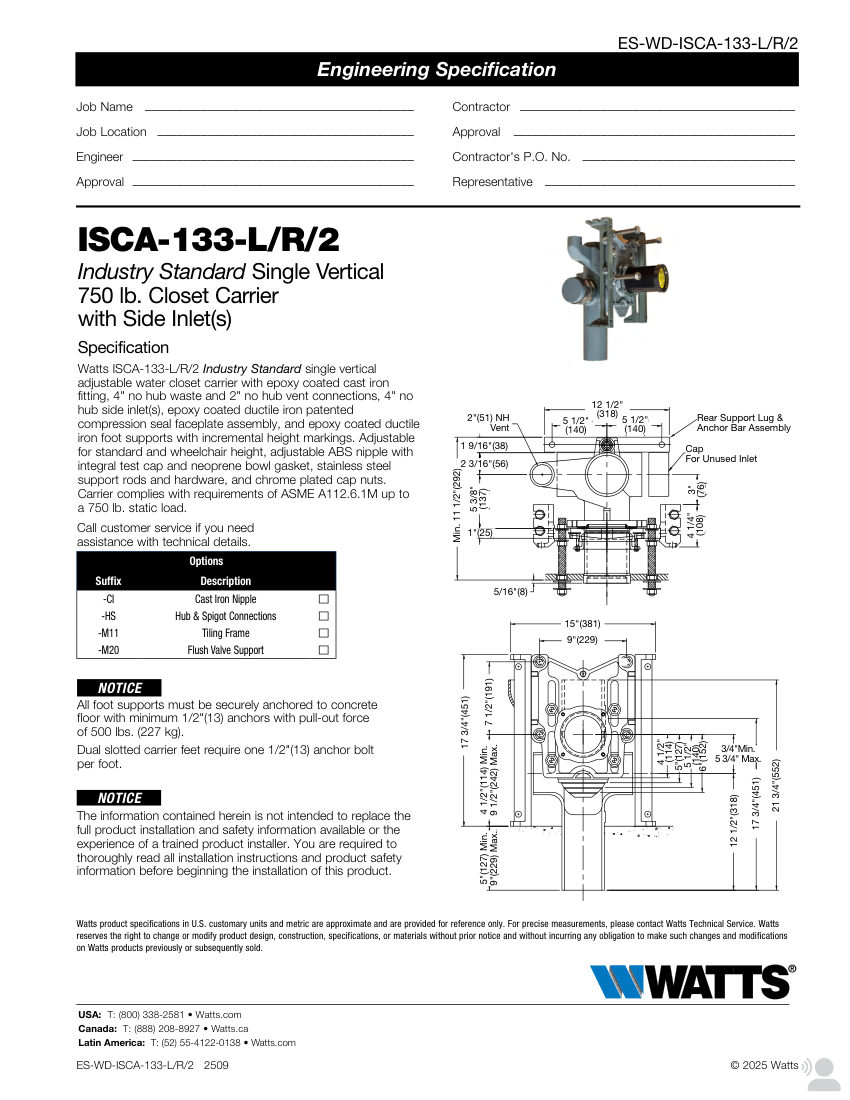

Watts ISCA-133-L/R/2 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
ISCA-133-L/R/2
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberISCA-133-L/R/2
DescriptionWatts Water Closet Carrier (Closet Carrier). Model ISCA-133-L/R/2. 750 lb. load capacity; Adjustable for standard and wheelchair height; Includes integral test cap and neoprene bowl gasket; Side inlet configuration (L/R/2). material: Epoxy coated cast iron, ductile iron, ABS, stainless steel
Connection size4" waste, 2" vent, 4" side inlet
End connectionNo hub waste, no hub vent, no hub side inlet, compression seal faceplate
FinishEpoxy coated, chrome plated cap nuts
MountingVertical, adjustable height, foot supports with anchor bar
Dimensions12 1/2" x 12 1/2" faceplate, 22 3/16" h

Also cataloged as: ISCA-133-L/R/2--CI, ISCA-133-L/R/2--HS, ISCA-133-L/R/2--M11, ISCA-133-L/R/2--M20
