DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsThermal Pro - Isotherm MixingISO 1 ST

Watts Isotherm Mixing Panel (ThermalPro). Model ES-WR-ThermalPro-ISO. Includes 1" stainless steel manifold with isolation valves and temperature gauges; Features 3-way tempering valve and supply water temperature control sensor; Equipped with Watts 25-58 water lubricated circulator (1/25 HP, 17.5 GPM max); Available in manifold sizes M-2 through M-12. material: Stainless steel manifold, powder-coated galvanized steel enclosure, cast iron circulator casing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFISO-1-ST.pdfData sheet

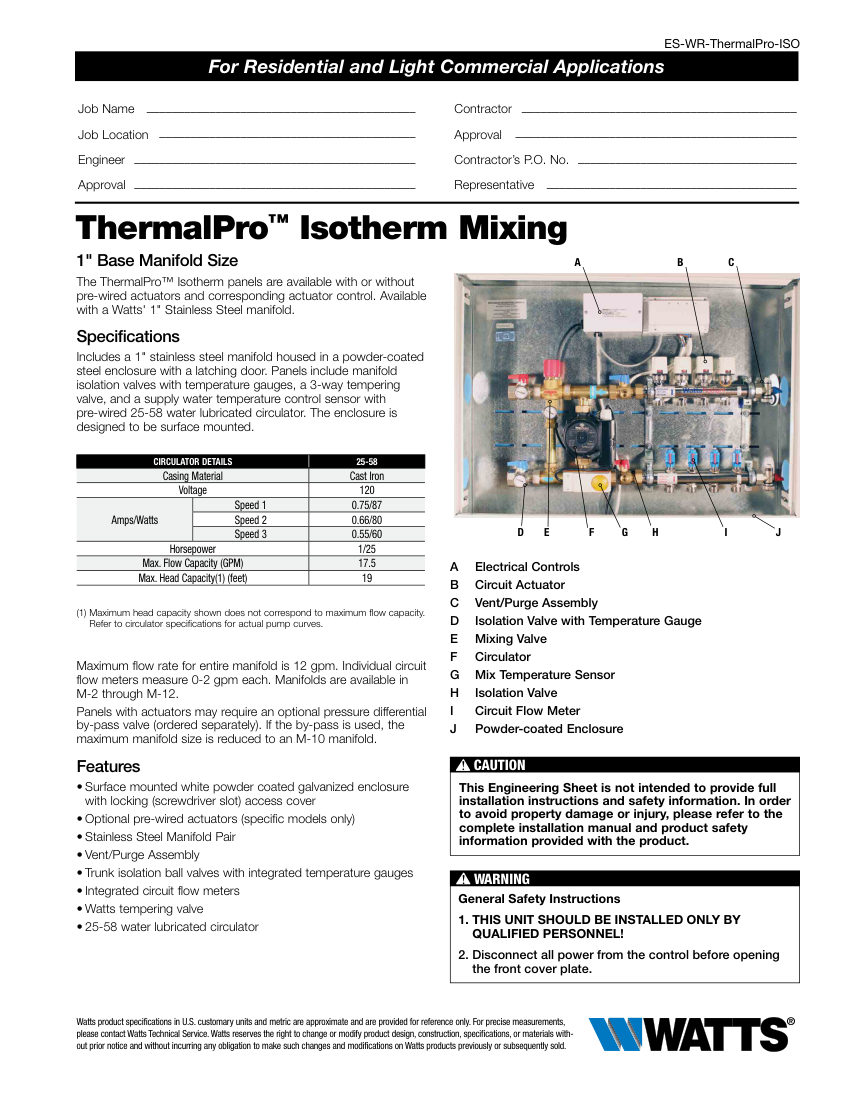

Watts ISO 1 ST cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
ISO 1 ST
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberISO 1 ST
DescriptionWatts Isotherm Mixing Panel (ThermalPro). Model ES-WR-ThermalPro-ISO. Includes 1" stainless steel manifold with isolation valves and temperature gauges; Features 3-way tempering valve and supply water temperature control sensor; Equipped with Watts 25-58 water lubricated circulator (1/25 HP, 17.5 GPM max); Available in manifold sizes M-2 through M-12. material: Stainless steel manifold, powder-coated galvanized steel enclosure, cast iron circulator casing
Connection size1" manifold
Flow Rate12 gpm max manifold flow, 0-2 gpm per circuit
FinishWhite powder coated
MountingSurface mounte

Also cataloged as: ISO 1 ST A, ISO 1 ST N, ISO 1 ST 2, ISO 1 ST 3, ISO 1 ST 4, ISO 1 ST 5, ISO 1 ST 6, ISO 1 ST 7, ISO 1 ST 8, ISO 1 ST 9, ISO 1 ST 10
