DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsLF1L2 M7

Watts Temperature and Pressure Relief Valve (Temperature and Pressure Relief Valves). Model LF1L, LF1XL, LF10L, LF100XL. Temperature relief set at 210°F (99°C); Pressure relief settings available at 75, 100, 125, and 150 psi; Designed for water heaters up to 105,000 BTU/Hr; Includes test lever and thermostat (short or extension depending on model). material: Lead Free copper silicon alloy (LF1L, LF1XL); Lead Free copper alloy (LF10L, LF100XL); Stainless steel spring

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF1L2-M7.pdfData sheet

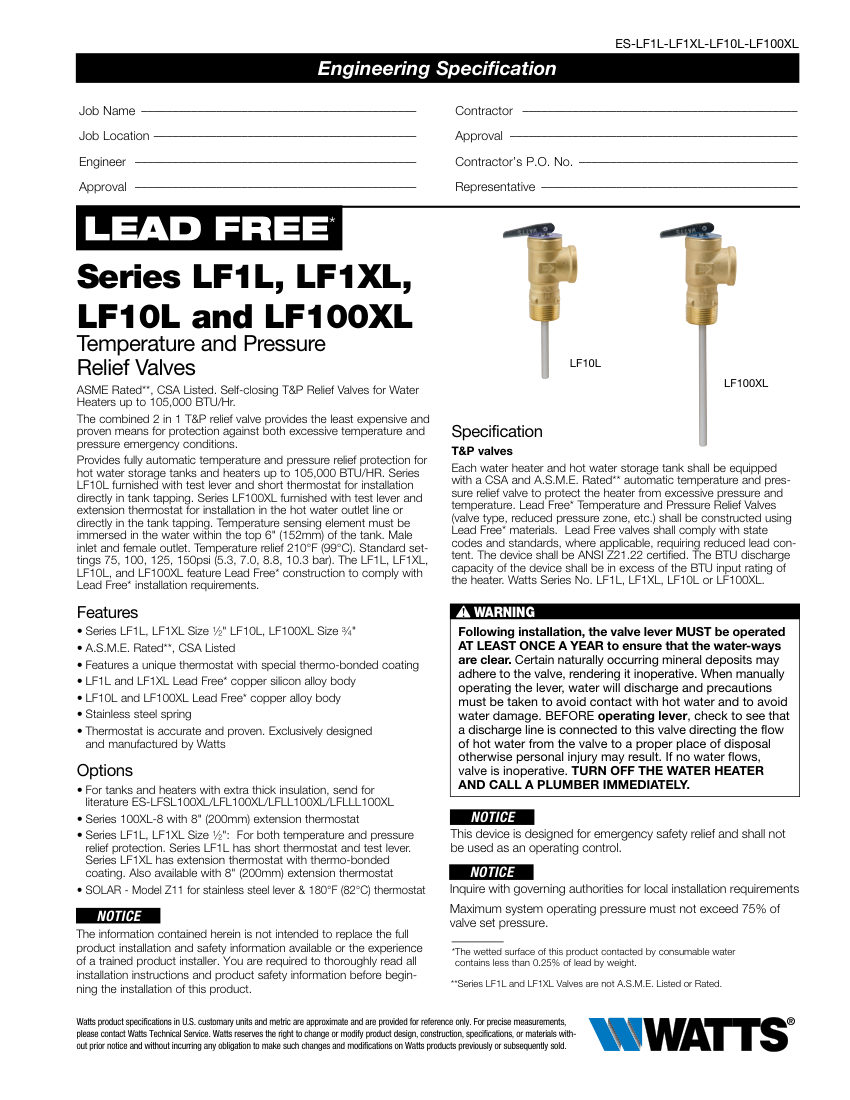

Watts LF1L2 M7 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LF1L2 M7
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF1L2 M7
DescriptionWatts Temperature and Pressure Relief Valve (Temperature and Pressure Relief Valves). Model LF1L, LF1XL, LF10L, LF100XL. Temperature relief set at 210°F (99°C); Pressure relief settings available at 75, 100, 125, and 150 psi; Designed for water heaters up to 105,000 BTU/Hr; Includes test lever and thermostat (short or extension depending on model). material: Lead Free copper silicon alloy (LF1L, LF1XL); Lead Free copper alloy (LF10L, LF100XL); Stainless steel spring
Connection size1/2" (LF1L, LF1XL); 3/4" (LF10L, LF100XL)
End connectionMale inlet, female outlet
Pressure RatingStandard se

Also cataloged as: LF1XL-4 M7, LF1XL-8 M7, LF10L-2 M7, LF100XL-4 M7, LF100XL-8 M7, LF-1L, LF-1XL, LF-10L, LF-100XL, LF-2, LF-4
