DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsLF26

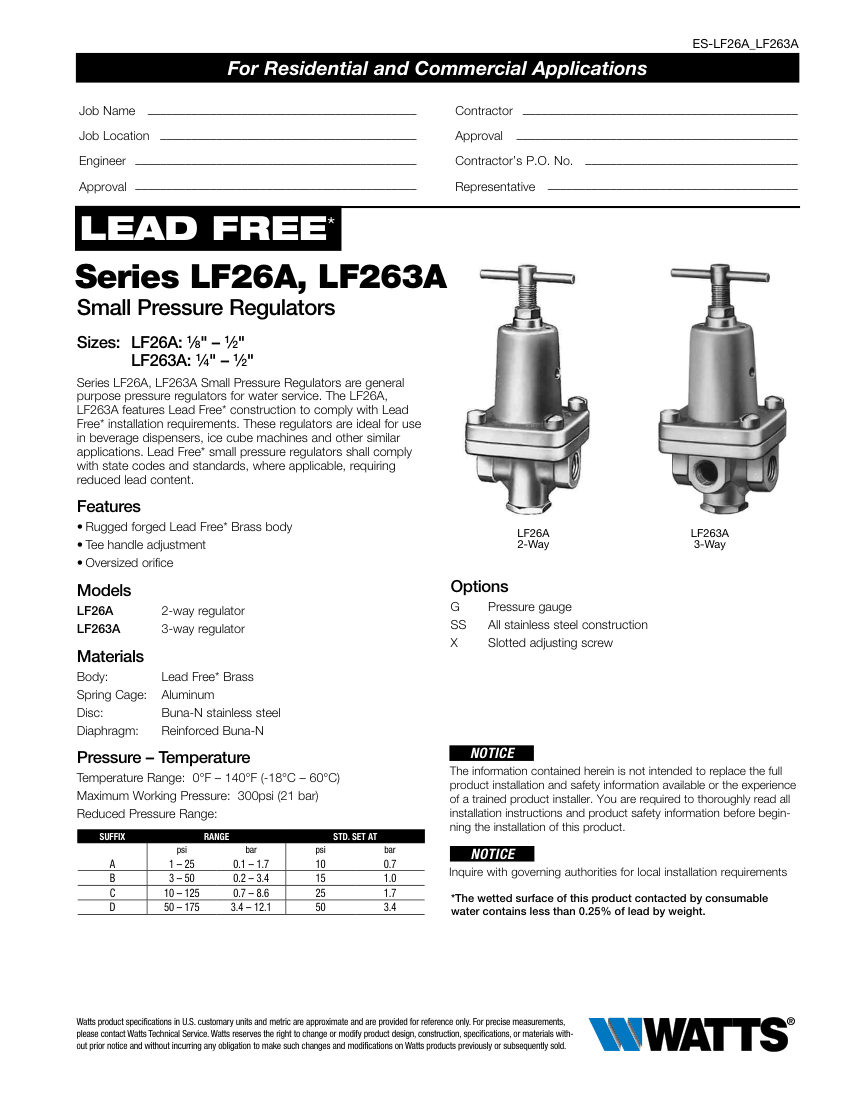

Name: Watts LF26
Brand: Watts
SKU: LF26

Watts Small Pressure Regulator (Pressure Regulators). Model LF26A, LF263A. 2-way (LF26A) and 3-way (LF263A) configurations

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	LF26
Description	Watts Small Pressure Regulator (Pressure Regulators). Model LF26A, LF263A. 2-way (LF26A) and 3-way (LF263A) configurations
Temperature Range	0°F – 140°F (-18°C – 60°C); Tee handle adjustment with oversized orifice
Weight	1 lb (0.45 kg). material: Lead Free Brass body, Aluminum spring cage, Buna-N stainless steel disc, Reinforced Buna-N diaphragm
Connection size	1/8" - 1/2"
Pressure Rating	Max Working Pressure: 300 psi (21 bar)
Reduced Pressure Range	1-175 psi (0.1-12.1 bar)
Flow Rate	Up to 7 gpm (27 lpm) at 50 psi reduced pressure
Dimensions	A: 2 1/8 in (54 mm), C: 4 3/8 in (111 mm)

Also cataloged as: LF26-A, LF26-3A, LF26-1/8, LF26-1/4, LF26-3/8, LF26-1/2, LF26-B, LF26-C, LF26-D, LF26-G, LF26-SS
