Watts Dielectric union (Watts LF3001A). Model LF3001A. Prevents galvanic corrosion between dissimilar metals; Maximum temperature 180°F (82°C) with standard joint A; Maximum temperature 300°F (149°C) with optional EPDM joint B; Tested for 600 V dry line performance without sparking. material: Lead-free brass, steel, malleable iron, polysulfone, Buna-N

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF3001A.pdfData sheet

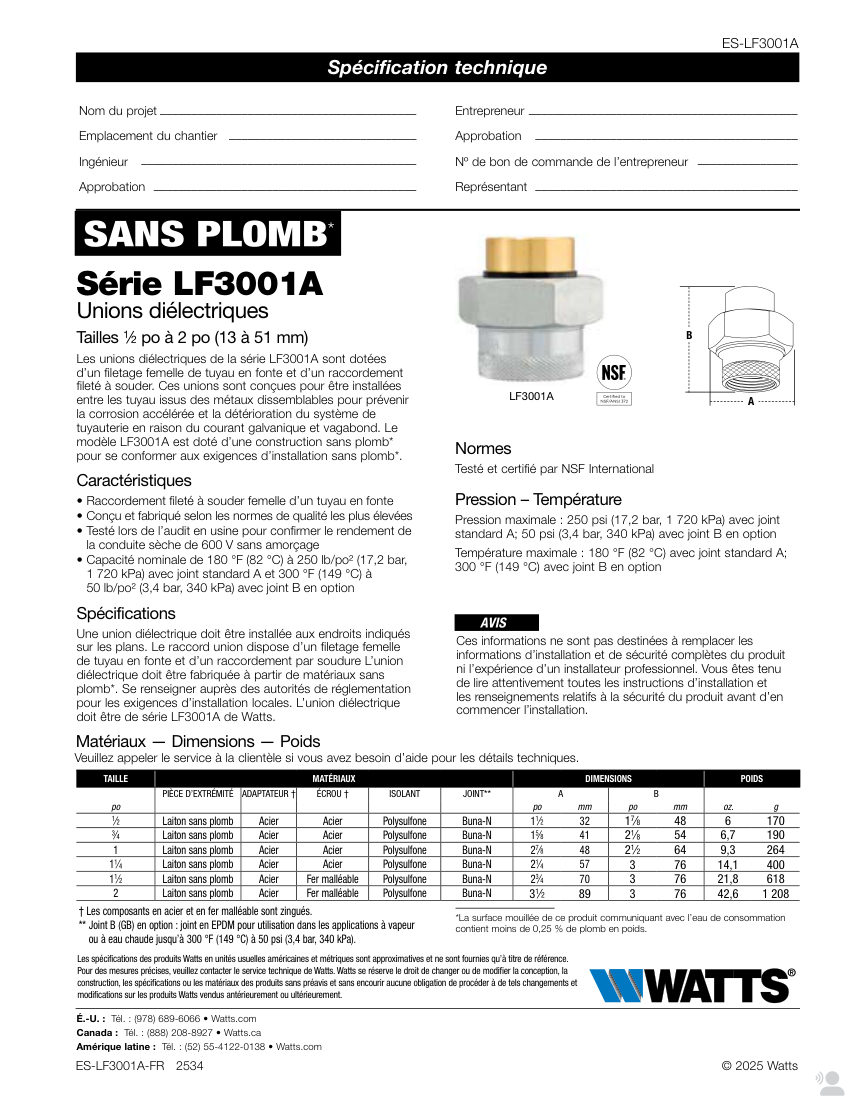

Watts LF3001A cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LF3001A
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF3001A
DescriptionWatts Dielectric union (Watts LF3001A). Model LF3001A. Prevents galvanic corrosion between dissimilar metals; Maximum temperature 180°F (82°C) with standard joint A; Maximum temperature 300°F (149°C) with optional EPDM joint B; Tested for 600 V dry line performance without sparking. material: Lead-free brass, steel, malleable iron, polysulfone, Buna-N
Connection size1/2 in to 2 in (13 to 51 mm)
End connectionFemale pipe thread and threaded solder connection
Pressure Rating250 psi (17.2 bar) with standard joint A; 50 psi (3.4 bar) with optional joint B
FinishZinc plated (steel and mall

Also cataloged as: LF3001A-1/2, LF3001A-3/4, LF3001A-1, LF3001A-1 1/4, LF3001A-1 1/2, LF3001A-2, LF3001A-11/4, LF3001A-11/2, LF3001A-Buna-N, LF3001A-GB
