DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsLF3002 (French)LF3002

Watts Dielectric Union (Dielectric Unions). Model LF3002. Prevents galvanic corrosion between dissimilar metals; Maximum temperature rating: 82°C (180°F); Tested for 600 V dry circuit performance; Sizes range from 1/2" x 3/8" to 1" x 3/4". material: Lead-free brass, Steel (zinc plated), Polysulfone, Buna-N

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF3002.pdfData sheet

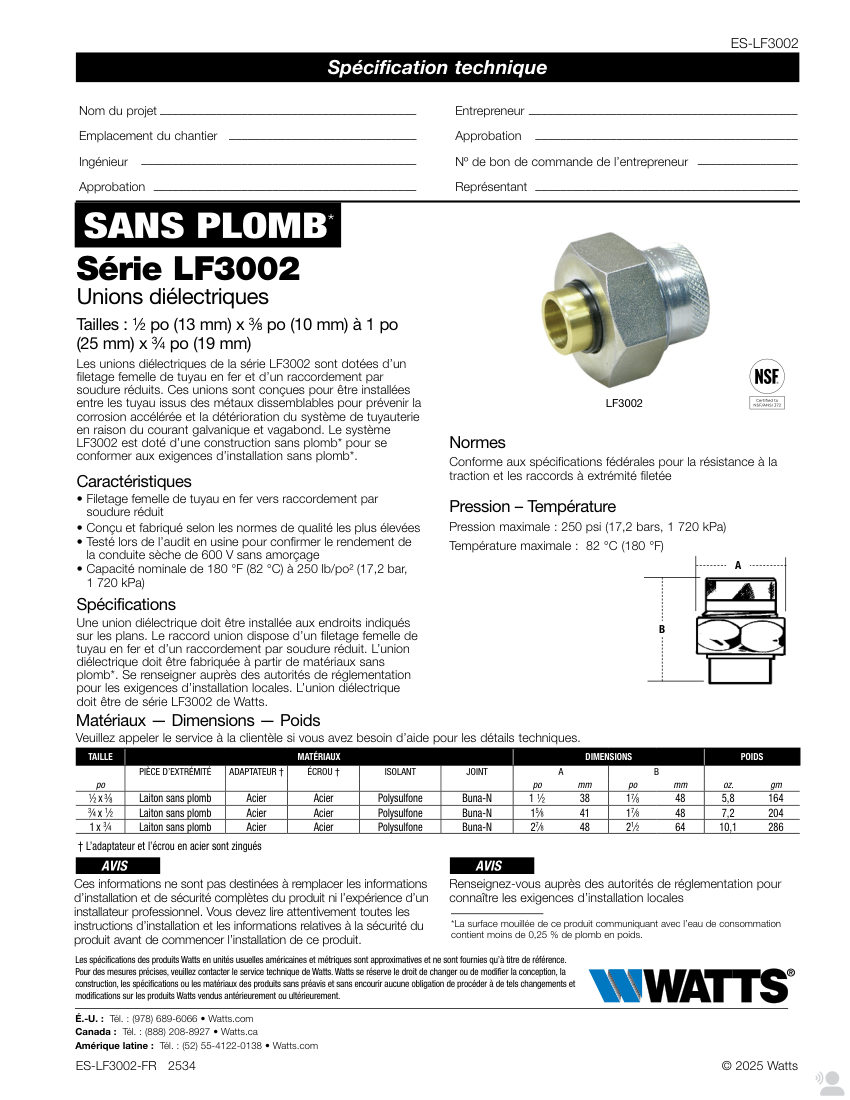

Watts LF3002 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LF3002
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF3002
DescriptionWatts Dielectric Union (Dielectric Unions). Model LF3002. Prevents galvanic corrosion between dissimilar metals; Maximum temperature rating: 82°C (180°F); Tested for 600 V dry circuit performance; Sizes range from 1/2" x 3/8" to 1" x 3/4". material: Lead-free brass, Steel (zinc plated), Polysulfone, Buna-N
Connection size1/2" x 3/8" to 1" x 3/4"
End connectionIron pipe female thread to reduced solder connection
Pressure Rating250 psi (17.2 bar)
DimensionsVaries by size (e.g., 1.5" x 1.875" for 1/2" x 3/8")
ComplianceLead-free (<0.25% lead), Federal specs for tensile strength and th

Also cataloged as: LF3002-1/2X3/8, LF3002-3/4X1/2, LF3002-1X3/4
