DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsLF3006 (French)LF3006

Watts Dielectric Union (Dielectric Unions). Model LF3006. Prevents galvanic corrosion between dissimilar metals; Rated for 180°F (82°C) at 250 psi; Optional EPDM gasket for steam/hot water up to 300°F (149°C); Lead-free construction compliant with installation requirements. material: Steel, Malleable Iron, Polysulfone, Buna-N

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF3006.pdfData sheet

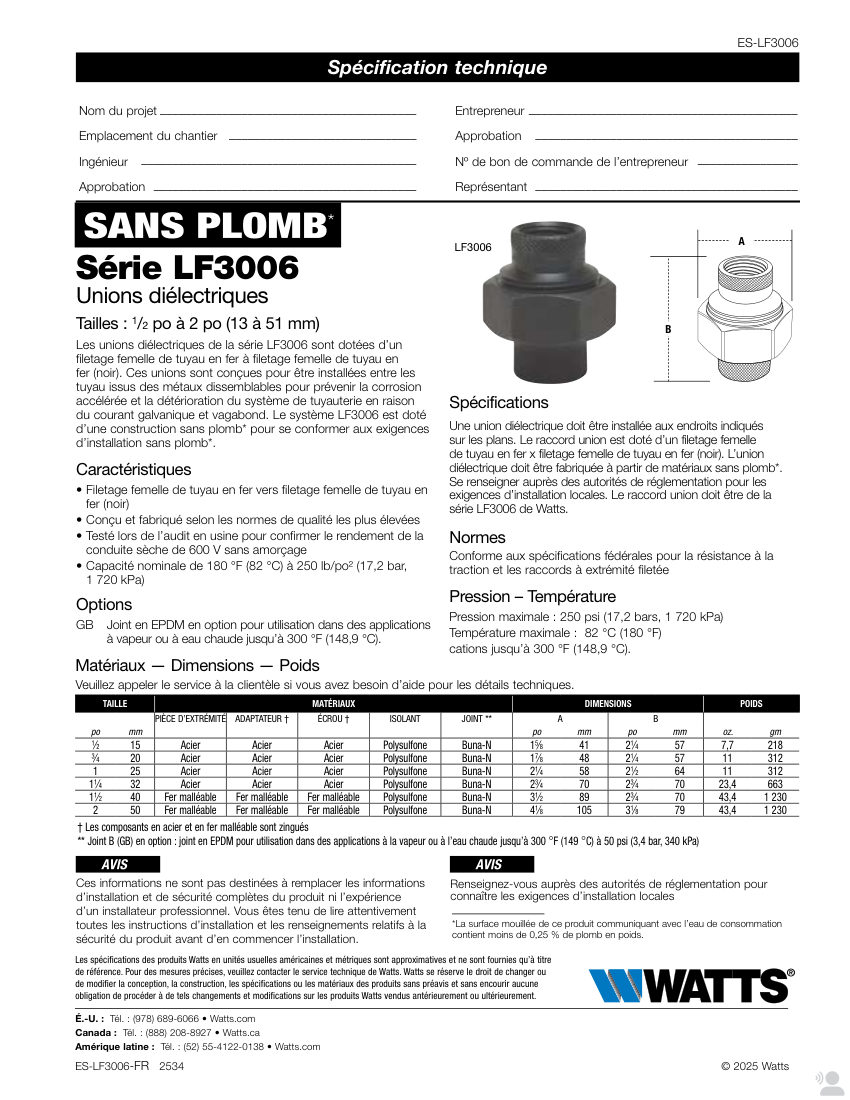

Watts LF3006 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LF3006
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF3006
DescriptionWatts Dielectric Union (Dielectric Unions). Model LF3006. Prevents galvanic corrosion between dissimilar metals; Rated for 180°F (82°C) at 250 psi; Optional EPDM gasket for steam/hot water up to 300°F (149°C); Lead-free construction compliant with installation requirements. material: Steel, Malleable Iron, Polysulfone, Buna-N
Connection size1/2" to 2" (13 to 51 mm)
End connectionFemale Iron Pipe Thread x Female Iron Pipe Thread (Black)
Pressure Rating250 psi (17.2 bar)
FinishZinc plated (steel and malleable iron components)
DimensionsVaries by size (e.g., 1/2": A=15/8", B=2 1/4").
