DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsLF3007 (French)LF3007

Watts Dielectric Union (Dielectric Unions). Model LF3007. Prevents galvanic corrosion between dissimilar metals; Maximum operating temperature 82 °C (180 °F); Tested for 600 V dry circuit performance; Lead-free construction compliant with installation requirements. material: Lead-free brass, Zinc-plated steel, Polysulfone, Buna-N

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF3007.pdfData sheet

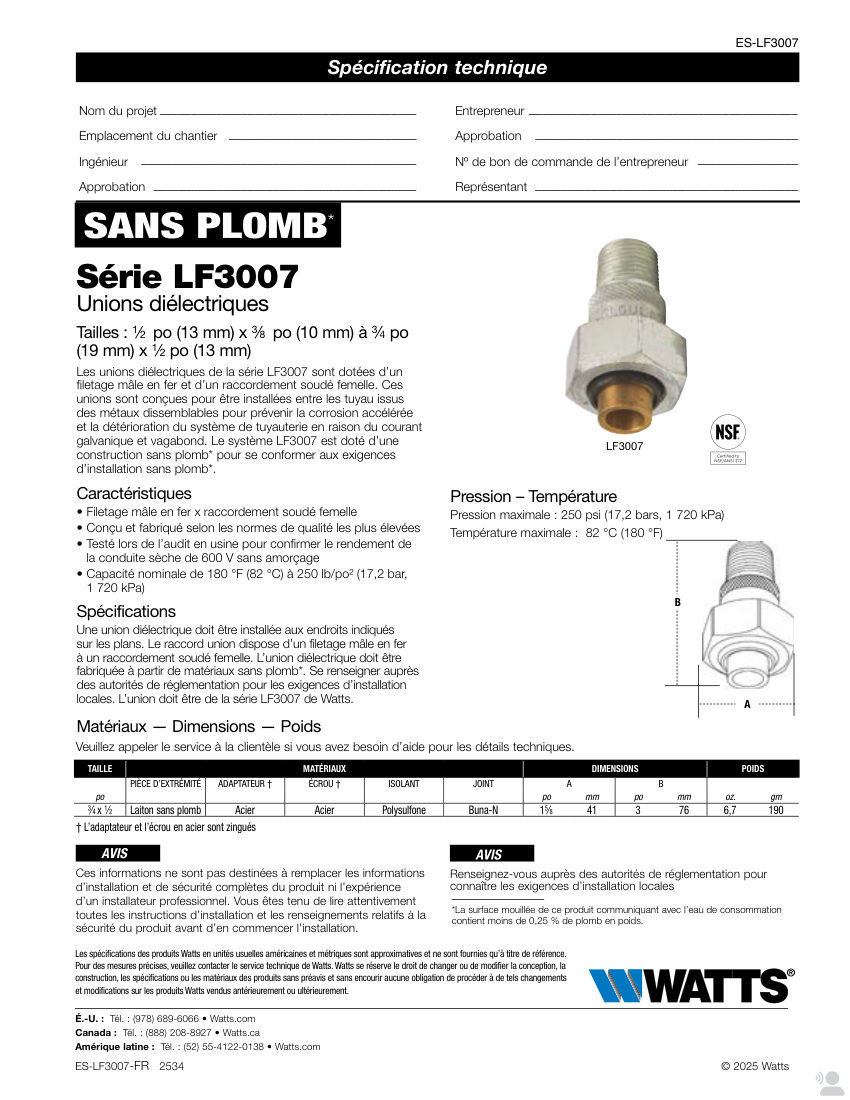

Watts LF3007 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LF3007
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF3007
DescriptionWatts Dielectric Union (Dielectric Unions). Model LF3007. Prevents galvanic corrosion between dissimilar metals; Maximum operating temperature 82 °C (180 °F); Tested for 600 V dry circuit performance; Lead-free construction compliant with installation requirements. material: Lead-free brass, Zinc-plated steel, Polysulfone, Buna-N
Connection size1/2 in (13 mm) x 3/8 in (10 mm) to 3/4 in (19 mm) x 1/2 in (13 mm)
End connectionMale iron thread x Female solder connection
Pressure Rating250 psi (17.2 bar, 1720 kPa)
FinishZinc-plated (adapter and nut)
DimensionsA: 1 5/8 in (41 mm), B: 3

Also cataloged as: LF3007-3/4 X 1/2, LF3007-Laiton sans plomb, LF3007-Acier, LF3007-Polysulfone, LF3007-Buna-N
