WattsLF3008

Watts Dielectric Union (Dielectric Unions). Model LF3008. Prevents accelerated corrosion due to galvanic and stray current; Rated to 180°F (82°C) at 250psi (17.2 bar); Factory audit tested for 600V dry line performance without flashover; Insulator material is Polysulfone. material: Lead Free Brass, Brass, Polysulfone, Buna-N

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF3008.pdfData sheet

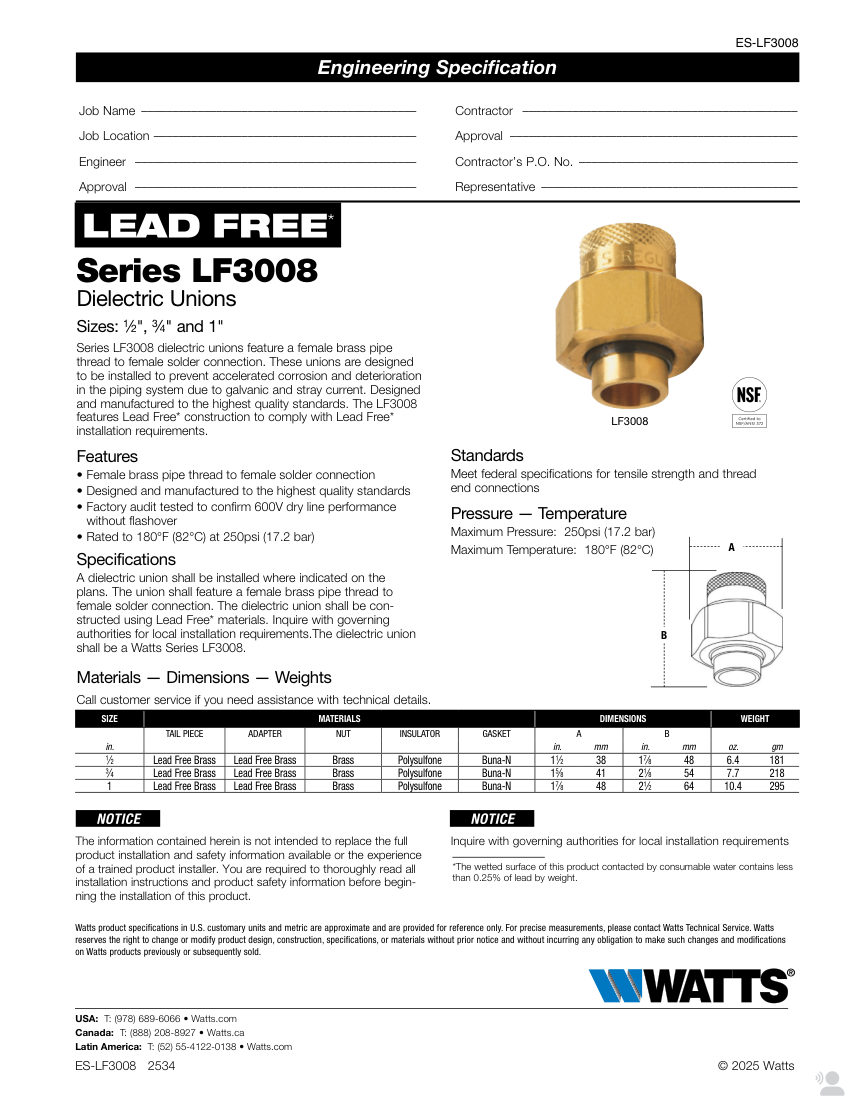

Watts LF3008 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LF3008
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF3008
DescriptionWatts Dielectric Union (Dielectric Unions). Model LF3008. Prevents accelerated corrosion due to galvanic and stray current; Rated to 180°F (82°C) at 250psi (17.2 bar); Factory audit tested for 600V dry line performance without flashover; Insulator material is Polysulfone. material: Lead Free Brass, Brass, Polysulfone, Buna-N
Connection size1/2", 3/4", 1"
End connectionFemale brass pipe thread to female solder
Pressure Rating250psi (17.2 bar)
DimensionsA: 1.5"-2.5", B: 1.75"-2.5"
ComplianceLead Free (<0.25% lead), Federal specifications for tensile strength and thread end connection

Also cataloged as: LF3008-1/2, LF3008-3/4, LF3008-1
