WattsLF301

Watts Dielectric Union (Dielectric Unions). Model LF301. Rated to 250°F (121°C) at 250psi (17.2 bar); EPDM Gasket temperature range: -20°F to 250°F (-7°C to 121°C); Lead Free construction with wetted surface lead content <0.25%; Designed to prevent galvanic corrosion between dissimilar metals. material: Forged Steel A105, Lead Free Forged Brass, Plastic, EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF301.pdfData sheet

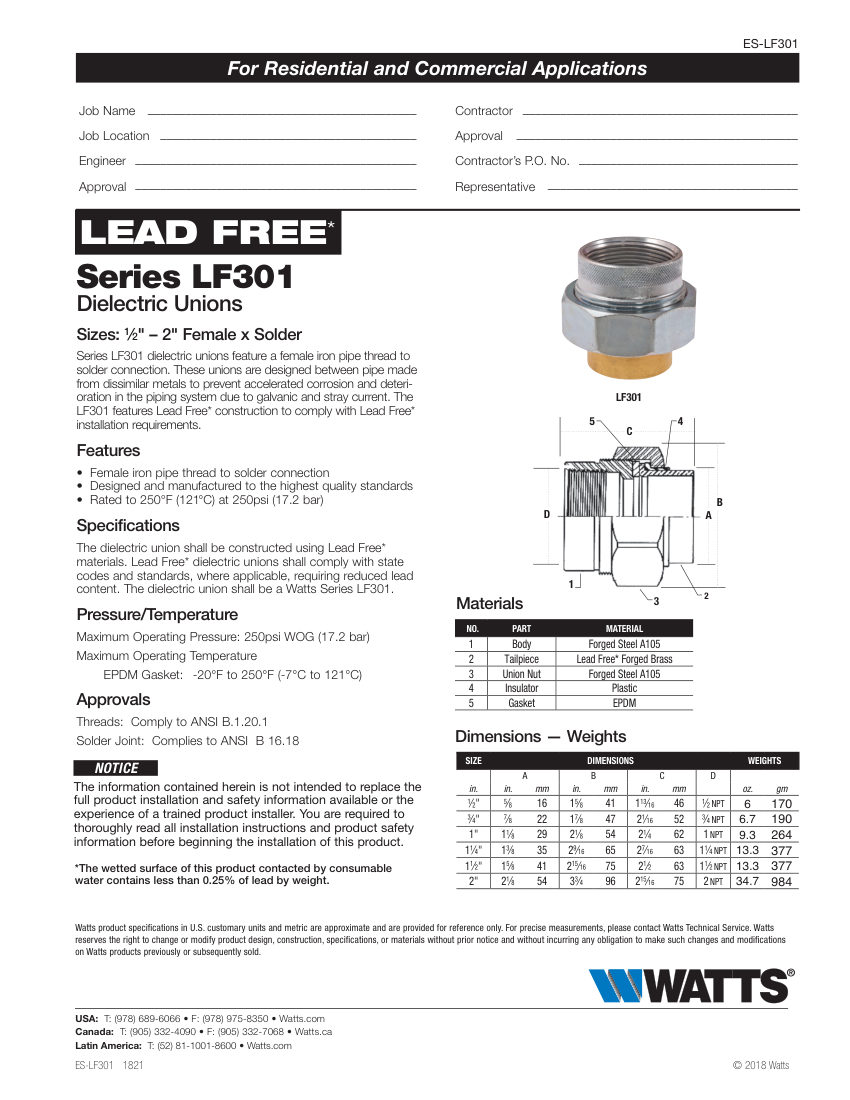

Watts LF301 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LF301
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF301
DescriptionWatts Dielectric Union (Dielectric Unions). Model LF301. Rated to 250°F (121°C) at 250psi (17.2 bar); EPDM Gasket temperature range: -20°F to 250°F (-7°C to 121°C); Lead Free construction with wetted surface lead content <0.25%; Designed to prevent galvanic corrosion between dissimilar metals. material: Forged Steel A105, Lead Free Forged Brass, Plastic, EPDM
Connection size1/2" – 2"
End connectionFemale Iron Pipe Thread to Solder
Pressure Rating250psi WOG (17.2 bar)
DimensionsVaries by size (e.g., 1/2": A=5/8", B=16mm, C=1 5/8", D=46mm)
ComplianceANSI B.1.20.1, ANSI B 16.18, Lead

Also cataloged as: LF301-1/2, LF301-3/4, LF301-1, LF301-1 1/4, LF301-1 1/2, LF301-2
