WattsLF302

Watts Reduced Dielectric Union (Dielectric Unions). Model LF302. Maximum Operating Pressure: 250psi (17.2 bar) WOG; Maximum Operating Temperature: -20°F – 210°F (-7°C – 99°C); Gasket rated to 210°F (99°C) to 250psi (17.2 bar)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF302.pdfData sheet

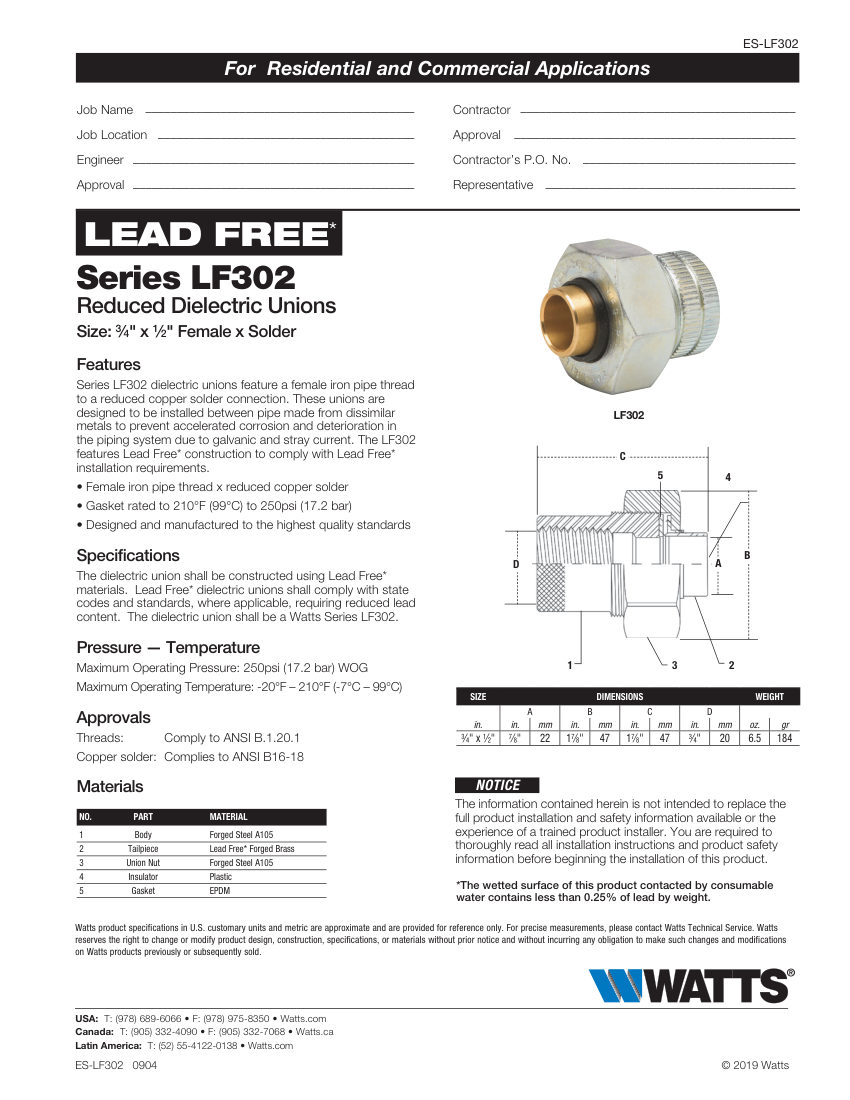

Watts LF302 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LF302
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF302
DescriptionWatts Reduced Dielectric Union (Dielectric Unions). Model LF302. Maximum Operating Pressure: 250psi (17.2 bar) WOG; Maximum Operating Temperature: -20°F – 210°F (-7°C – 99°C); Gasket rated to 210°F (99°C) to 250psi (17.2 bar)
Weight6.5 oz (184 gr). material: Forged Steel A105, Lead Free Forged Brass, Plastic, EPDM
Connection size3/4" x 1/2"
End connectionFemale iron pipe thread x reduced copper solder
Pressure Rating250psi (17.2 bar) WOG
DimensionsA: 7/8" (22 mm), B: 17/8" (47 mm), C: 17/8" (47 mm), D: 3/4" (20 mm)
ComplianceANSI B.1.20.1, ANSI B16-18, Lead Free (<0.25% lead).
