DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsLF305

Watts Dielectric Union (Dielectric Unions). Model LF305. Maximum Operating Pressure: 250psi (17.2 bar) WOG; Maximum Operating Temperature: -20°F – 210°F (-7°C – 99°C); Gasket rated to 210°F (99°C) at 250psi (17.2 bar); Prevents accelerated corrosion due to galvanic and stray current. material: Forged Steel A105, Lead Free Forged Brass, Plastic, EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF305.pdfData sheet

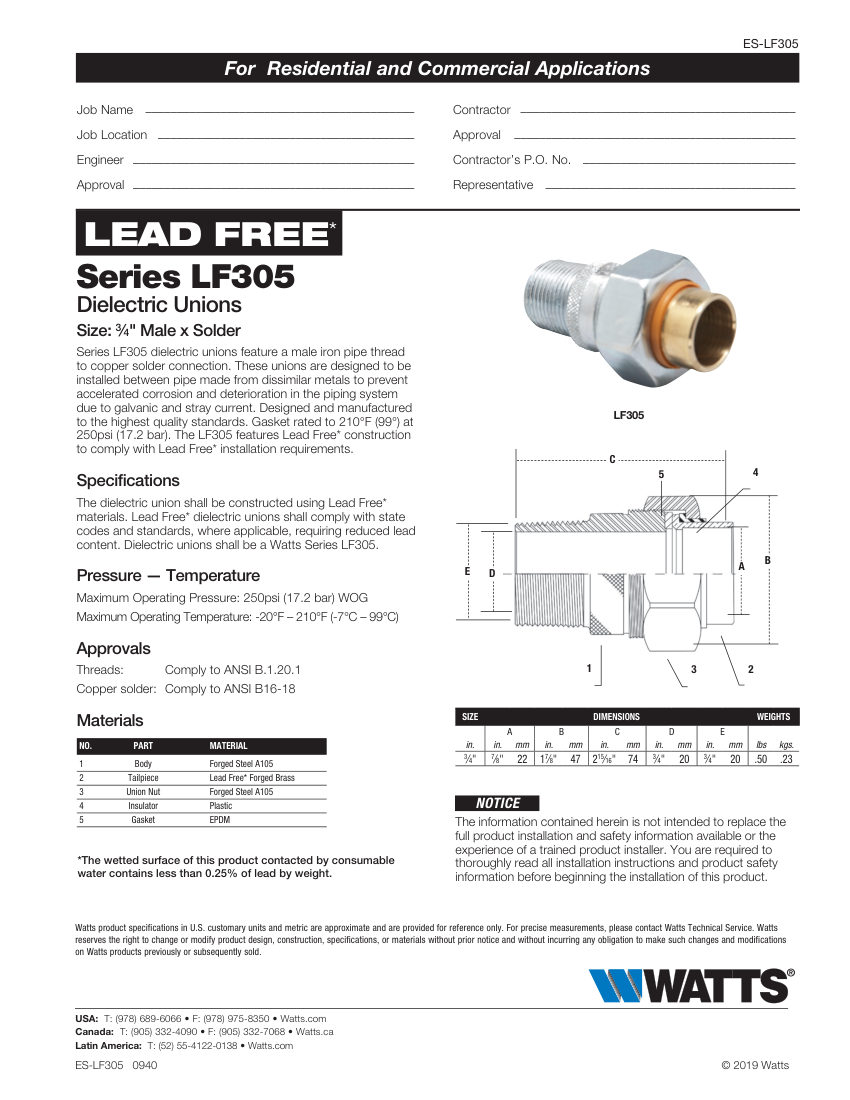

Watts LF305 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LF305
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF305
DescriptionWatts Dielectric Union (Dielectric Unions). Model LF305. Maximum Operating Pressure: 250psi (17.2 bar) WOG; Maximum Operating Temperature: -20°F – 210°F (-7°C – 99°C); Gasket rated to 210°F (99°C) at 250psi (17.2 bar); Prevents accelerated corrosion due to galvanic and stray current. material: Forged Steel A105, Lead Free Forged Brass, Plastic, EPDM
Connection size3/4" Male x Solder
End connectionMale Iron Pipe Thread to Copper Solder
Pressure Rating250psi (17.2 bar) WOG
DimensionsA: 3/4", B: 7/8", C: 22mm, D: 17/8", E: 20mm
ComplianceANSI B.1.20.1, ANSI B16-18, Lead Free (<0.25% l
