DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

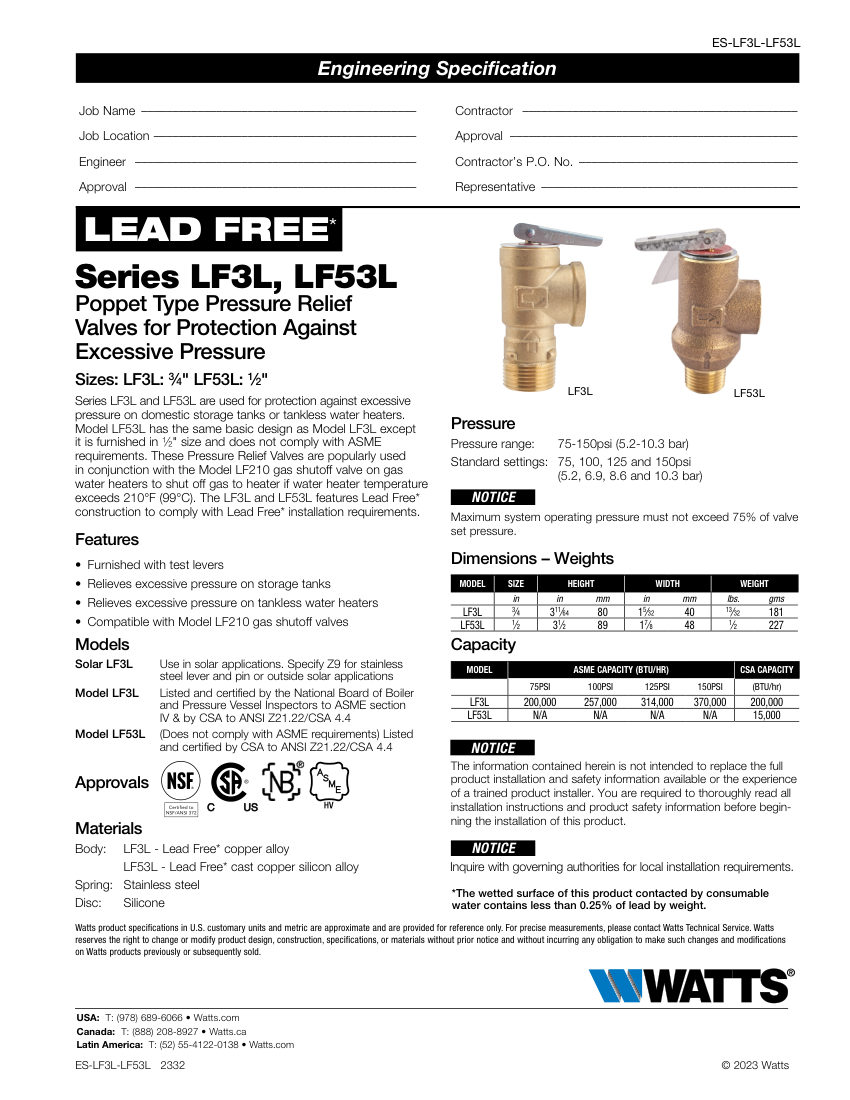

WattsLF3L

Name: Watts LF3L
Brand: Watts
SKU: LF3L

Watts Poppet Type Pressure Relief Valve (Pressure Relief Valves). Model LF3L, LF53L. Pressure range: 75-150 psi (5.2-10.3 bar)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	LF3L
Description	Watts Poppet Type Pressure Relief Valve (Pressure Relief Valves). Model LF3L, LF53L. Pressure range: 75-150 psi (5.2-10.3 bar)
Standard settings	75, 100, 125, and 150 psi
LF3L ASME Capacity	200,000 to 370,000 BTU/hr
LF53L CSA Capacity	15,000 BTU/hr. material: Lead Free copper alloy (LF3L), Lead Free cast copper silicon alloy (LF53L), Stainless steel spring, Silicone disc
Connection size	3/4" (LF3L), 1/2" (LF53L)
Pressure Rating	75-150 psi (5.2-10.3 bar)
Dimensions	LF3L: 3 11/64" H x 1 5/32" W
LF53L	3 1/2" H x 1 7/8" W
Compliance	ASME Section IV (LF3L), CSA ANSI Z21.22/CSA 4.4, Le

Also cataloged as: LF3L-Z9
