DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsLF560, LFH560LF560

Watts Mini Water Pressure Reducing Valve (Pressure Reducing Valves). Model LF560, LFH560. Lead Free brass construction; Stainless steel stem and spring; Standard 1/8" (3mm) gauge port (plugged); Suitable for water supply pressures up to 300psi (21 bar). material: Lead Free brass body, Stainless steel stem and spring, Buna-N seat and diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF560.pdfData sheet

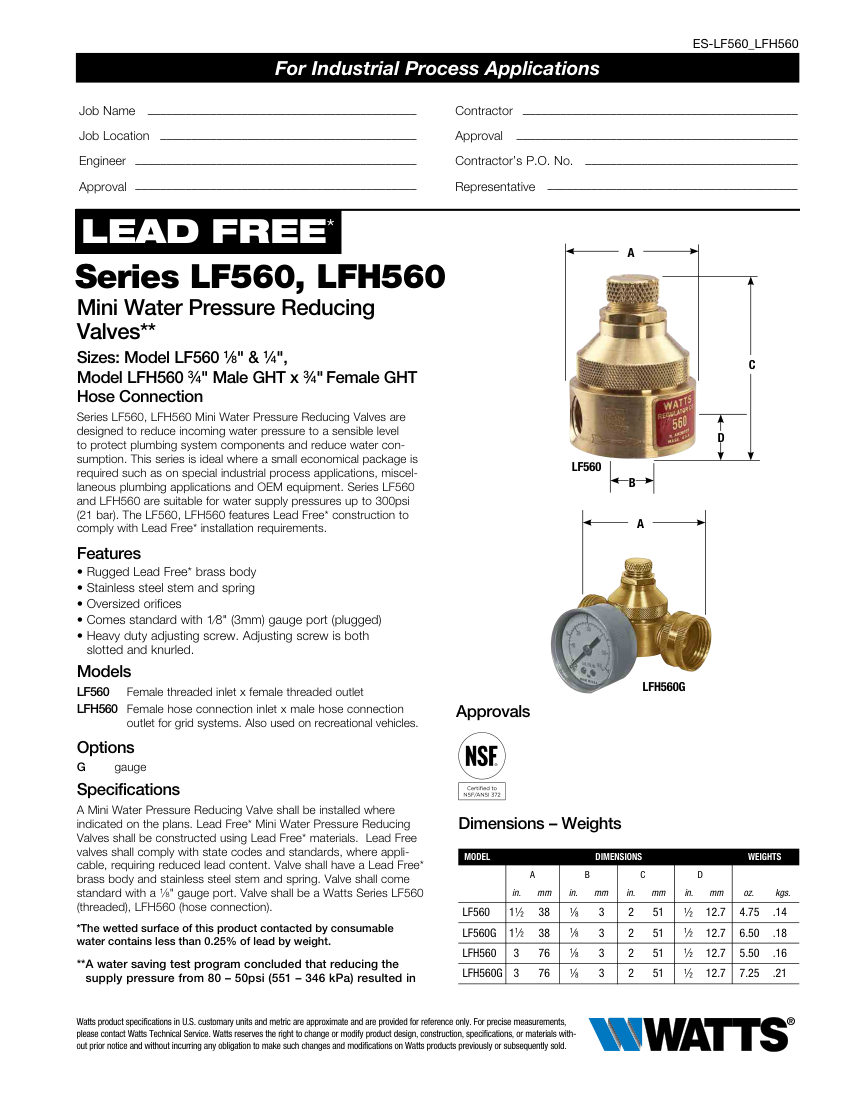

Watts LF560 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LF560
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF560
DescriptionWatts Mini Water Pressure Reducing Valve (Pressure Reducing Valves). Model LF560, LFH560. Lead Free brass construction; Stainless steel stem and spring; Standard 1/8" (3mm) gauge port (plugged); Suitable for water supply pressures up to 300psi (21 bar). material: Lead Free brass body, Stainless steel stem and spring, Buna-N seat and diaphragm
Connection size1/8" & 1/4" (LF560), 3/4" Male GHT x 3/4" Female GHT (LFH560)
End connectionFemale threaded (LF560), Hose connection (LFH560)
Pressure RatingUp to 300psi (21 bar) supply; Reduced pressure range 0-25psi (0-1.7 bar)
DimensionsA: 1.5

Also cataloged as: LF560G, LF560-G
