DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsLF8A

Watts Hose Connection Vacuum Breaker (Vacuum Breakers). Model LF8. Prevents back-siphonage of contaminated water into potable supply; Maximum operating temperature is 180°F (82°C); Not for use under continuous pressure; Lead Free construction for wetted surfaces. material: Copper silion alloy body (except 8P which is plastic), stainless steel working parts

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF8A.pdfData sheet

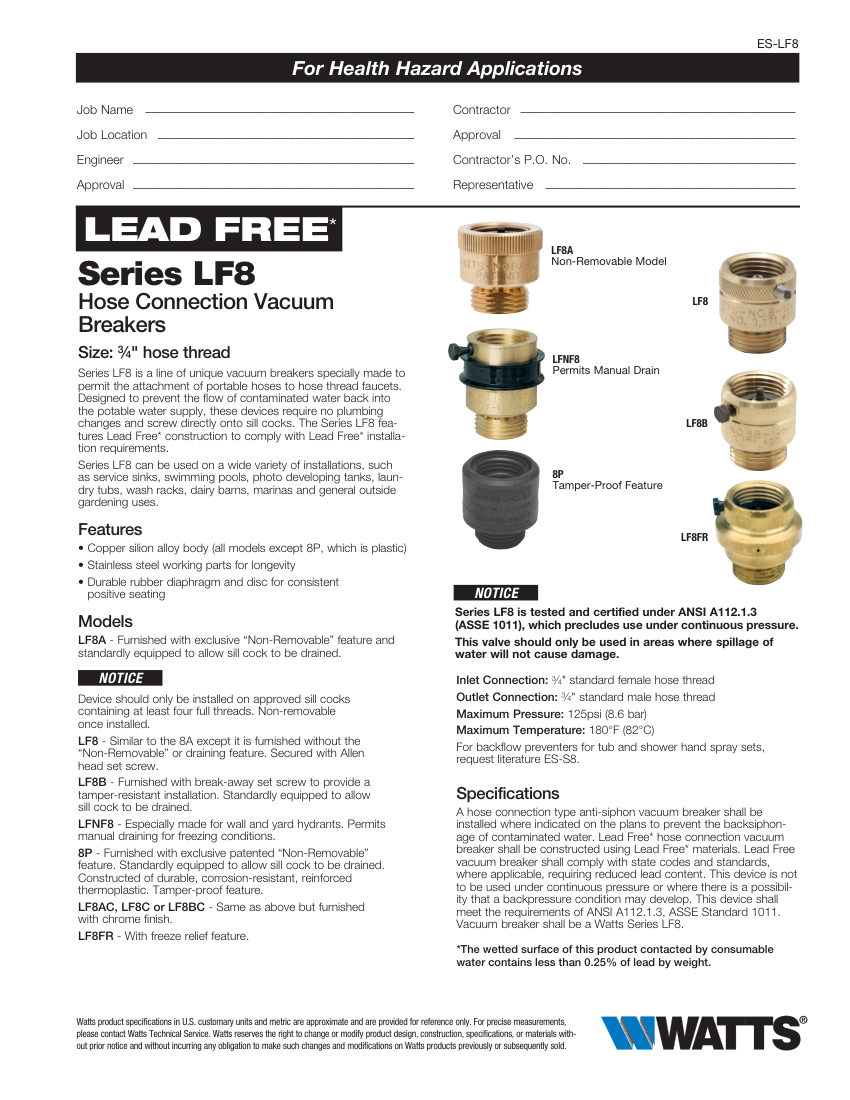

Watts LF8A cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LF8A
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF8A
DescriptionWatts Hose Connection Vacuum Breaker (Vacuum Breakers). Model LF8. Prevents back-siphonage of contaminated water into potable supply; Maximum operating temperature is 180°F (82°C); Not for use under continuous pressure; Lead Free construction for wetted surfaces. material: Copper silion alloy body (except 8P which is plastic), stainless steel working parts
Connection size3/4" hose thread
End connectionInlet: 3/4" standard female hose thread
Outlet3/4" standard male hose thread
Pressure Rating125psi (8.6 bar)
FinishStandard (Chrome available for LF8AC, LF8C, LF8BC)
MountingScrews

Also cataloged as: LF8, LF8B, LFNF8, 8P, LF8AC, LF8C, LF8BC, LF8FR
