DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsLFB6000LFB6000

Watts 2-Piece Standard Port Lead Free Ball Valve (Ball Valves). Model LFB6000. Blowout proof pressure retaining 316 stainless steel stem; Durafill® seats for 1/4"-1/2" & 1-1/4"-4"; Uniseal® seats for 3/4" & 1"; Quarter-turn open or close operation; Reinforced PTFE stem packing seal. material: Lead Free Cast Silicone Bronze body, 316 stainless steel ball & stem

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLFB6000.pdfData sheet

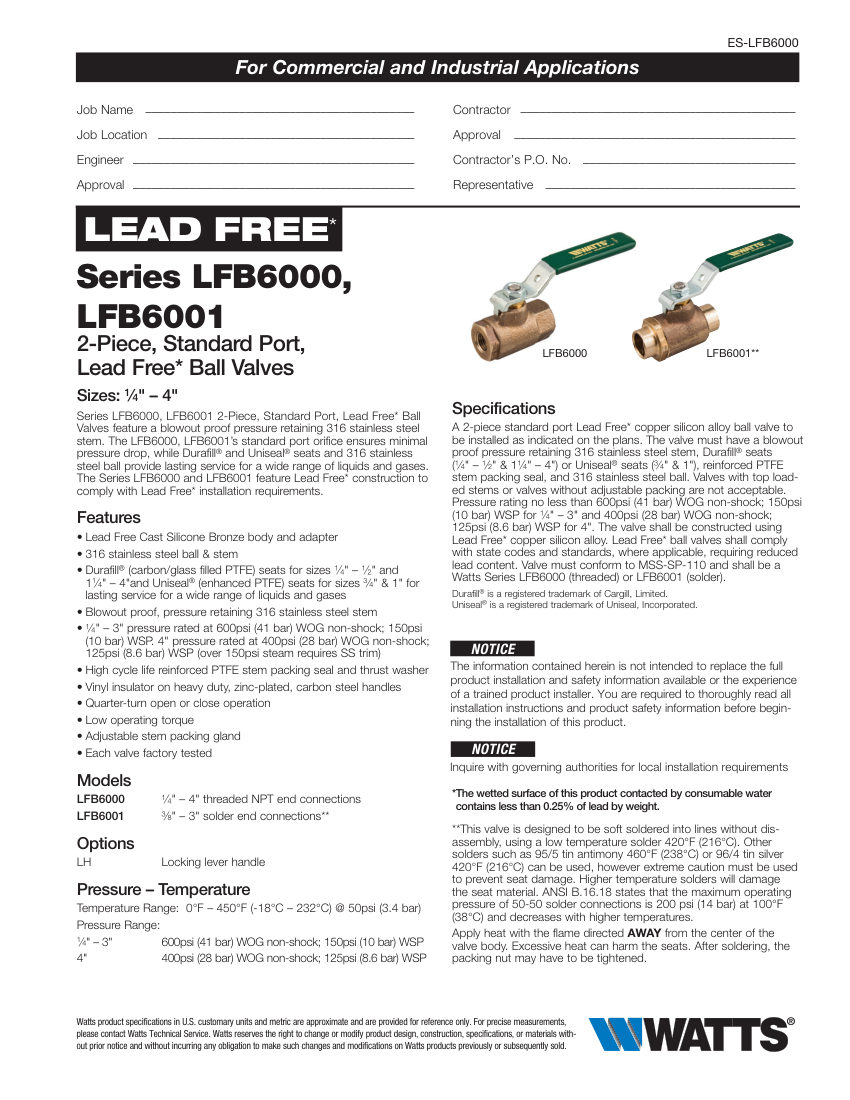

Watts LFB6000 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LFB6000
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLFB6000
DescriptionWatts 2-Piece Standard Port Lead Free Ball Valve (Ball Valves). Model LFB6000. Blowout proof pressure retaining 316 stainless steel stem; Durafill® seats for 1/4"-1/2" & 1-1/4"-4"; Uniseal® seats for 3/4" & 1"; Quarter-turn open or close operation; Reinforced PTFE stem packing seal. material: Lead Free Cast Silicone Bronze body, 316 stainless steel ball & stem
Connection size1/4" – 4"
End connectionThreaded NPT
Pressure Rating600psi (41 bar) WOG non-shock; 150psi (10 bar) WSP (1/4"-3"); 400psi (28 bar) WOG non-shock; 125psi (8.6 bar) WSP (4")
ComplianceLead Free (<0.25% lead), MSS-SP-

Also cataloged as: LFB6001, LFB-6000, LFB-6001, LFB-1/4, LFB-3/8, LFB-1/2, LFB-3/4, LFB-1, LFB-1-1/4, LFB-1-1/2, LFB-2
