WattsLFB6800LFB6800

Watts 3-Piece Full Port Ball Valve (Ball Valves). Model LFB6800. 3-piece, lift-out design for in-line maintenance; Full port orifice for maximum flow capacity; Blow-out proof, pressure retaining stem

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLFB6800.pdfData sheet

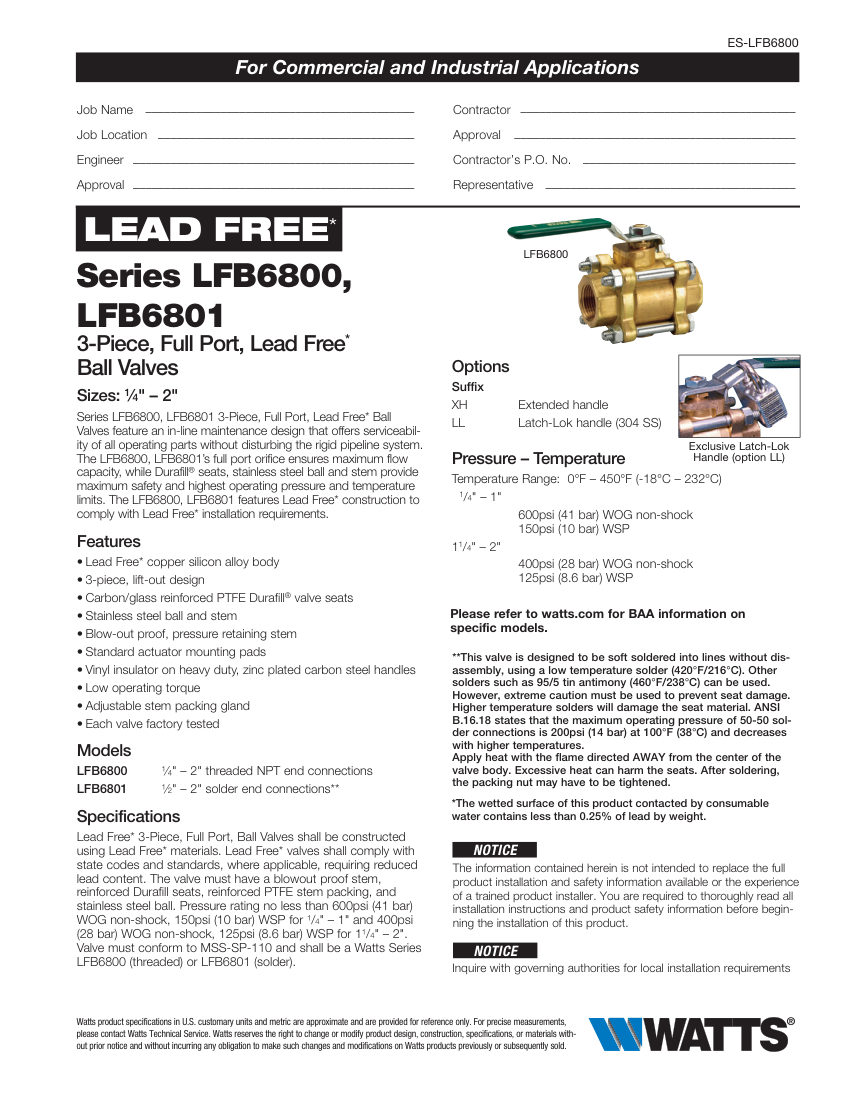

Watts LFB6800 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LFB6800
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLFB6800
DescriptionWatts 3-Piece Full Port Ball Valve (Ball Valves). Model LFB6800. 3-piece, lift-out design for in-line maintenance; Full port orifice for maximum flow capacity; Blow-out proof, pressure retaining stem
Temperature range0°F – 450°F (-18°C – 232°C). material: Lead Free copper silicon alloy body, stainless steel ball and stem, carbon/glass reinforced PTFE Durafill seats
Connection size1/4" – 2"
End connectionThreaded NPT
Pressure Rating600psi (41 bar) WOG non-shock (1/4"-1"), 400psi (28 bar) WOG non-shock (1-2")
FinishZinc plated carbon steel handles
MountingIn-line maintenance desig

Also cataloged as: LFB6801, LFB-6800, LFB-6801, LFB-1/4, LFB-3/8, LFB-1/2, LFB-3/4, LFB-1, LFB-11/4, LFB-11/2, LFB-2
