WattsLFFBV-3-PRESS-M1LFFBV-3-Press-M1
Watts 2-Piece Full Port Ball Valve (Ball Valve). Model LFFBV-3-Press-M1. Designed for ProPress® Piping Systems; Compatible with types K, L, and M hard copper tubing 1/2" - 2"; Compatible with soft copper tubing 1/2" – 1 1/4"; Triple reinforced stem seal design. material: Lead Free Brass (DZR Brass CW511L, T.E.A Coated Brass CW510L)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- LFFBV-3-Press-M1
- Product type
- Plumbing
- MasterFormat
- 22

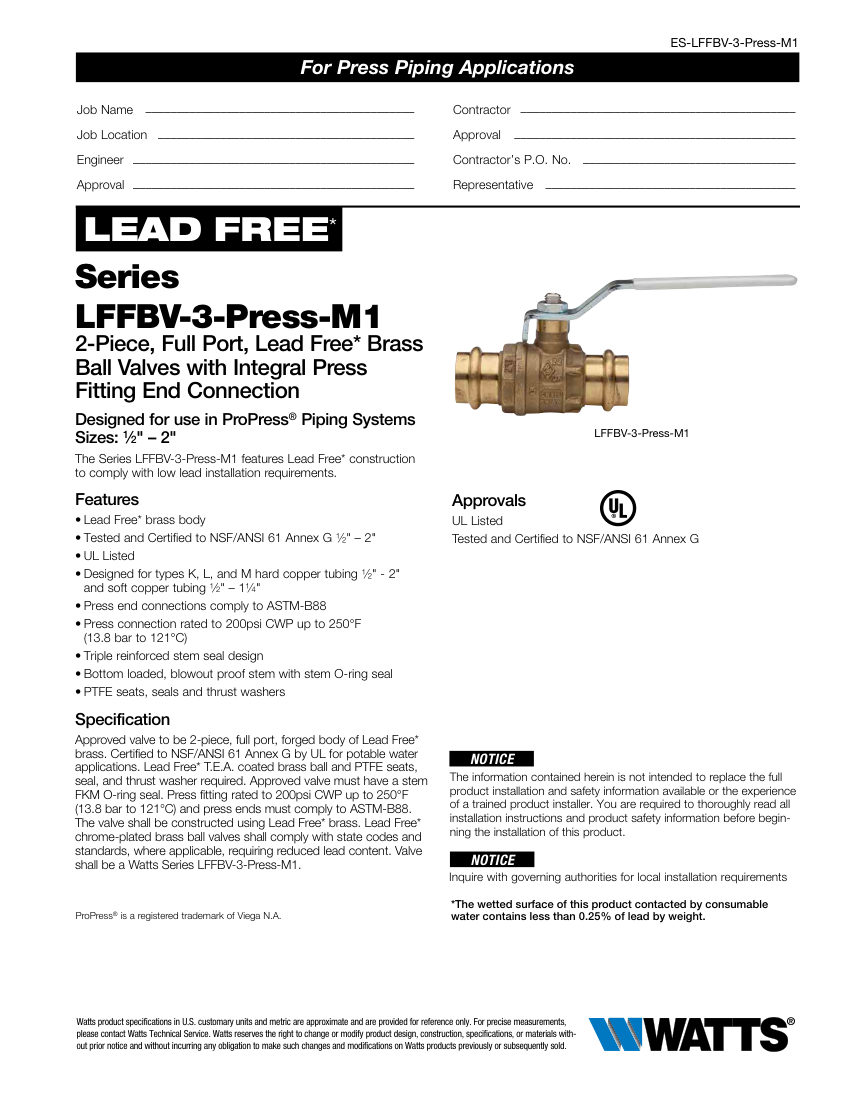

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | LFFBV-3-Press-M1 |
|---|---|
| Description | Watts 2-Piece Full Port Ball Valve (Ball Valve). Model LFFBV-3-Press-M1. Designed for ProPress® Piping Systems; Compatible with types K, L, and M hard copper tubing 1/2" - 2"; Compatible with soft copper tubing 1/2" – 1 1/4"; Triple reinforced stem seal design. material: Lead Free Brass (DZR Brass CW511L, T.E.A Coated Brass CW510L) |
| Connection size | 1/2" – 2" |
| End connection | Integral Press Fitting |
| Pressure Rating | 200psi CWP up to 250°F (13.8 bar to 121°C) |
| Finish | Lead Free Chrome-Plated (implied by spec text 'Lead Free* chrome-plated brass ball valves') |
| Compliance | NSF/ANSI 61 Annex G, UL Li |
