WattsLFN223F

Watts Flanged Super Capacity Water Pressure Reducing Valve (Water Pressure Reducing Valves). Model LFN223F. Enlarged diaphragm, spring cage, and seat orifice for super capacity performance; Semibalanced piston feature for rapid response and maximum flow; Standard setting is 50 psi (345 kPa); All parts are serviceable without removing the valve from the line. material: Iron body, Stainless steel piston, Nylon-reinforced diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLFN223F.pdfData sheet

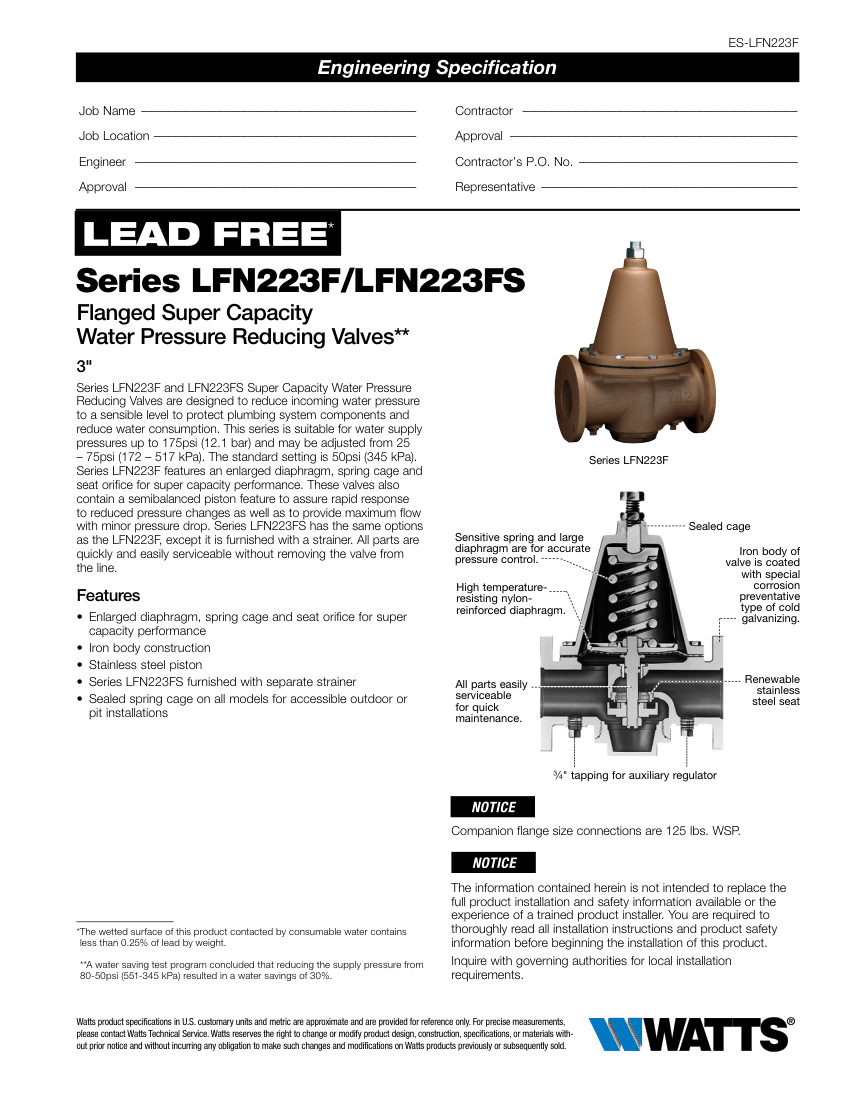

Watts LFN223F cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LFN223F
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLFN223F
DescriptionWatts Flanged Super Capacity Water Pressure Reducing Valve (Water Pressure Reducing Valves). Model LFN223F. Enlarged diaphragm, spring cage, and seat orifice for super capacity performance; Semibalanced piston feature for rapid response and maximum flow; Standard setting is 50 psi (345 kPa); All parts are serviceable without removing the valve from the line. material: Iron body, Stainless steel piston, Nylon-reinforced diaphragm
Connection size3"
End connectionFlanged
Pressure Rating175 psi (12.1 bar) max inlet; 25-75 psi (172-517 kPa) adjustable outlet
FinishCold galvanized; mounting

Also cataloged as: LFN223FS, LFN223F-S
