DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsLFSS, LFST, LFSWS, LFSWTLFSS 1/2

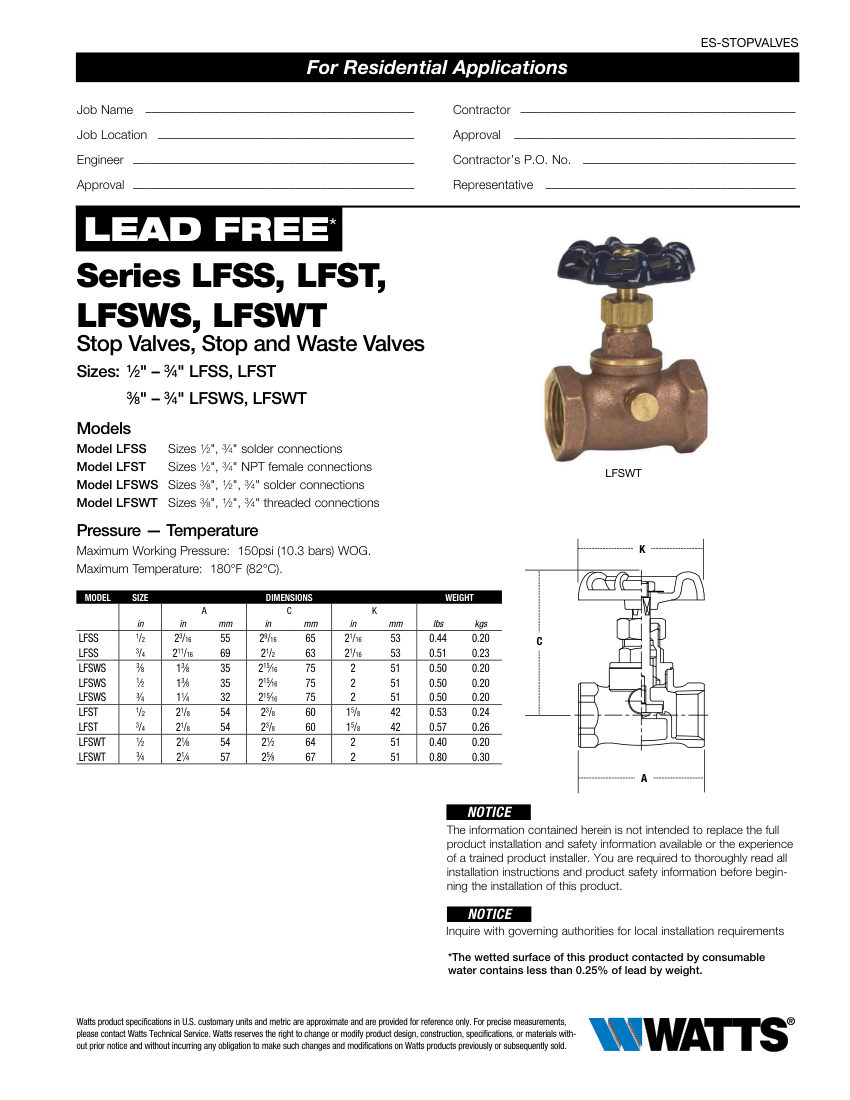

Name: Watts LFSS, LFST, LFSWS, LFSWT (LFSS 1/2)
Brand: Watts
SKU: LFSS 1/2

Watts Stop Valve (Stop Valves). Model LFSS, LFST, LFSWS, LFSWT. Maximum working pressure: 150 psi (10.3 bars) WOG

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	LFSS 1/2
Description	Watts Stop Valve (Stop Valves). Model LFSS, LFST, LFSWS, LFSWT. Maximum working pressure: 150 psi (10.3 bars) WOG
Maximum temperature	180°F (82°C)
Body material	Lead free brass
Hand wheel material	Cast iron. material: Lead free brass body, cast iron hand wheel, carbon steel hand wheel nut
Connection size	1/2" - 3/4" (LFSS, LFST); 3/8" - 3/4" (LFSWS, LFSWT)
End connection	Solder (LFSS, LFSWS) or NPT female (LFST, LFSWT)
Pressure Rating	150 psi (10.3 bars) WOG
Dimensions	Varies by model and size (e.g., LFSS 1/2": A=2 3/16", C=2 9/16", K=2 1/16")
Compliance	Lead free (<0.25% lead by

Also cataloged as: LFSS 3/4, LFST 1/2, LFST 3/4, LFSWS 3/8, LFSWS 1/2, LFSWS 3/4, LFSWT 3/8, LFSWT 1/2, LFSWT 3/4
